Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-21 and LANDSAT-9 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 2/4/2024
| Index | Date (NOAA-21) | Time (NOAA-21) | Lat,Lon (NOAA-21) | SZA (NOAA-21 ) | Date (LANDSAT-9) | Time (LANDSAT-9) | Lat,Lon (LANDSAT-9) | SZA (LANDSAT-9 ) | Distance(km) | Time Diff (sec) |
| 1 | 02/05/2024 | 07:34:31 | 70.62, 61.49 | 86.75 | 02/05/2024 | 07:35:39 | 70.53, 63.14 | 86.58 | 61.85 | 68 |
| 2 | 02/05/2024 | 08:25:01 | -69.91,-130.08 | 94.02 | 02/05/2024 | 08:25:18 | -69.92,-130.10 | 94.01 | 1.29 | 17 |
| 3 | 02/05/2024 | 09:15:46 | 69.84, 37.34 | 85.90 | 02/05/2024 | 09:14:45 | 69.82, 37.41 | 85.89 | 3.32 | 61 |
| 4 | 02/07/2024 | 23:51:11 | 70.00, 178.25 | 85.28 | 02/07/2024 | 23:52:18 | 69.99, 178.24 | 85.25 | 1.51 | 67 |
| 5 | 02/08/2024 | 00:41:52 | -69.87, -14.23 | 94.88 | 02/08/2024 | 00:41:48 | -69.87, -14.29 | 94.88 | 2.29 | 4 |
| 6 | 02/08/2024 | 01:32:31 | 69.48, 153.65 | 84.71 | 02/08/2024 | 01:31:19 | 69.55, 152.92 | 84.82 | 29.46 | 72 |
| 7 | 02/10/2024 | 16:08:02 | 69.97, -65.92 | 84.39 | 02/10/2024 | 16:08:47 | 69.97, -65.91 | 84.38 | 0.46 | 45 |
| 8 | 02/10/2024 | 16:58:43 | -69.83, 101.61 | 95.77 | 02/10/2024 | 16:58:17 | -69.86, 101.57 | 95.74 | 2.80 | 26 |
| 9 | 02/13/2024 | 08:24:53 | 69.95, 49.91 | 83.49 | 02/13/2024 | 08:25:16 | 69.93, 49.91 | 83.46 | 2.86 | 23 |
| 10 | 02/13/2024 | 09:15:34 | -69.81,-142.57 | 96.68 | 02/13/2024 | 09:14:46 | -69.81,-142.61 | 96.67 | 1.61 | 48 |
| 11 | 02/15/2024 | 23:51:02 | -70.21, -2.00 | 97.15 | 02/15/2024 | 23:52:14 | -70.13, -1.56 | 97.26 | 18.70 | 72 |
| 12 | 02/16/2024 | 00:41:42 | 69.89, 165.79 | 82.51 | 02/16/2024 | 00:41:43 | 69.91, 165.78 | 82.53 | 2.79 | 1 |
| 13 | 02/16/2024 | 01:32:24 | -69.79, -26.75 | 97.61 | 02/16/2024 | 01:31:13 | -69.80, -26.74 | 97.59 | 0.80 | 71 |

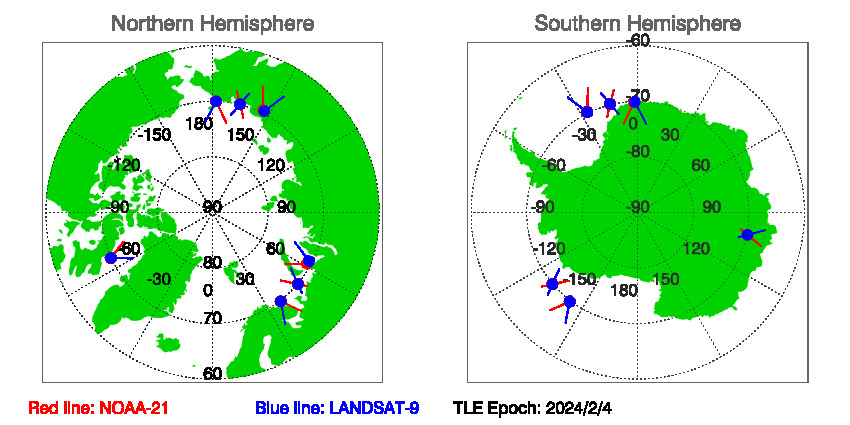

Figure of NOAA-21 and LANDSAT-9 satellite orbits during SNOs since TLE Epoch: 2/4/2024
Download SNOs between NOAA-21 and LANDSAT-9 since TLE EPOCH: 02/04/2024 in txt file.
Historial Predications of SNOs between NOAA-21 and LANDSAT-9
