Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-21 and LANDSAT-9 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 2/2/2024
| Index | Date (NOAA-21) | Time (NOAA-21) | Lat,Lon (NOAA-21) | SZA (NOAA-21 ) | Date (LANDSAT-9) | Time (LANDSAT-9) | Lat,Lon (LANDSAT-9) | SZA (LANDSAT-9 ) | Distance(km) | Time Diff (sec) |
| 1 | 02/02/2024 | 16:08:11 | -69.96, 114.06 | 93.17 | 02/02/2024 | 16:08:49 | -69.93, 114.04 | 93.21 | 3.28 | 38 |
| 2 | 02/02/2024 | 16:58:55 | 69.83, -78.45 | 86.69 | 02/02/2024 | 16:58:16 | 69.83, -78.45 | 86.69 | 0.13 | 39 |
| 3 | 02/05/2024 | 07:34:31 | 70.62, 61.49 | 86.76 | 02/05/2024 | 07:35:39 | 70.52, 63.13 | 86.58 | 61.95 | 68 |
| 4 | 02/05/2024 | 08:25:01 | -69.91,-130.08 | 94.01 | 02/05/2024 | 08:25:18 | -69.91,-130.11 | 94.02 | 1.09 | 17 |
| 5 | 02/05/2024 | 09:15:45 | 69.79, 37.41 | 85.85 | 02/05/2024 | 09:14:45 | 69.81, 37.40 | 85.88 | 2.67 | 60 |
| 6 | 02/07/2024 | 23:51:11 | 70.01, 178.24 | 85.28 | 02/07/2024 | 23:52:18 | 69.98, 178.23 | 85.24 | 3.35 | 67 |
| 7 | 02/08/2024 | 00:41:52 | -69.87, -14.23 | 94.88 | 02/08/2024 | 00:41:48 | -69.86, -14.30 | 94.88 | 2.66 | 4 |
| 8 | 02/08/2024 | 01:32:31 | 69.49, 153.64 | 84.71 | 02/08/2024 | 01:31:19 | 69.54, 152.90 | 84.81 | 29.29 | 72 |
| 9 | 02/10/2024 | 16:08:02 | 69.98, -65.93 | 84.40 | 02/10/2024 | 16:08:47 | 69.95, -65.93 | 84.36 | 2.91 | 45 |
| 10 | 02/10/2024 | 16:58:43 | -69.84, 101.60 | 95.76 | 02/10/2024 | 16:58:17 | -69.84, 101.55 | 95.76 | 1.94 | 26 |
| 11 | 02/13/2024 | 08:24:53 | 69.96, 49.89 | 83.50 | 02/13/2024 | 08:25:15 | 69.96, 49.96 | 83.48 | 2.61 | 22 |
| 12 | 02/13/2024 | 09:15:34 | -69.82,-142.58 | 96.67 | 02/13/2024 | 09:14:45 | -69.85,-142.56 | 96.64 | 3.11 | 49 |
| 13 | 02/15/2024 | 23:51:02 | -70.22, -2.02 | 97.14 | 02/15/2024 | 23:52:13 | -70.15, -1.53 | 97.24 | 19.91 | 71 |
| 14 | 02/16/2024 | 00:41:42 | 69.90, 165.78 | 82.52 | 02/16/2024 | 00:41:43 | 69.87, 165.73 | 82.50 | 3.22 | 1 |
| 15 | 02/16/2024 | 01:32:24 | -69.81, -26.77 | 97.59 | 02/16/2024 | 01:31:12 | -69.82, -26.71 | 97.57 | 2.84 | 72 |

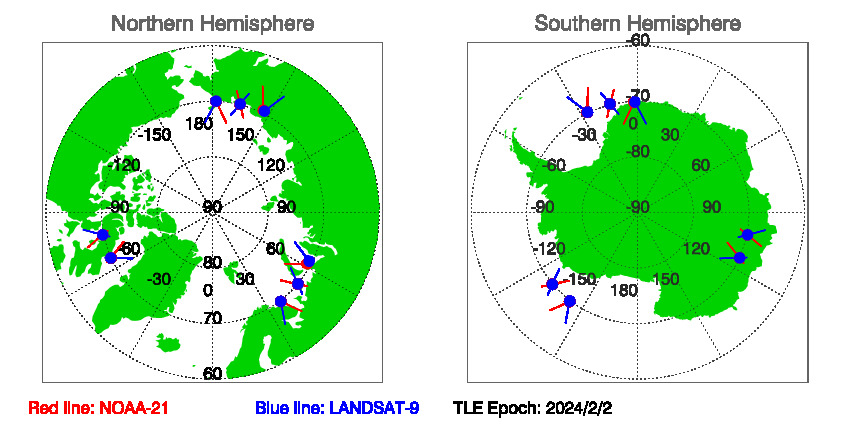

Figure of NOAA-21 and LANDSAT-9 satellite orbits during SNOs since TLE Epoch: 2/2/2024
Download SNOs between NOAA-21 and LANDSAT-9 since TLE EPOCH: 02/02/2024 in txt file.
Historial Predications of SNOs between NOAA-21 and LANDSAT-9
