Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-21 and FY3D Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/8/2022
| Index | Date (NOAA-21) | Time (NOAA-21) | Lat,Lon (NOAA-21) | SZA (NOAA-21 ) | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Distance(km) | Time Diff (sec) |
| 1 | 12/08/2022 | 23:15:16 | -81.20, -47.21 | 72.29 | 12/08/2022 | 23:14:09 | -81.20, -47.28 | 72.24 | 1.25 | 67 |
| 2 | 12/09/2022 | 00:06:01 | 81.20, 120.11 | 107.72 | 12/09/2022 | 00:04:55 | 81.20, 120.11 | 107.75 | 0.22 | 66 |
| 3 | 12/09/2022 | 00:56:36 | -81.20, -72.46 | 72.29 | 12/09/2022 | 00:55:40 | -81.20, -72.37 | 72.27 | 1.48 | 56 |
| 4 | 12/09/2022 | 01:47:21 | 81.20, 94.85 | 107.72 | 12/09/2022 | 01:46:26 | 81.20, 95.02 | 107.72 | 2.87 | 55 |
| 5 | 12/09/2022 | 02:37:56 | -81.20, -97.71 | 72.29 | 12/09/2022 | 02:37:12 | -81.20, -97.85 | 72.25 | 2.40 | 44 |
| 6 | 12/09/2022 | 03:28:41 | 81.20, 69.60 | 107.72 | 12/09/2022 | 03:27:58 | 81.20, 69.54 | 107.75 | 1.00 | 43 |
| 7 | 12/09/2022 | 04:19:16 | -81.20,-122.96 | 72.30 | 12/09/2022 | 04:18:43 | -81.20,-122.94 | 72.28 | 0.44 | 33 |
| 8 | 12/09/2022 | 05:10:01 | 81.20, 44.34 | 107.71 | 12/09/2022 | 05:09:29 | 81.20, 44.45 | 107.72 | 1.79 | 32 |
| 9 | 12/09/2022 | 06:00:37 | -81.21,-148.60 | 72.25 | 12/09/2022 | 06:00:15 | -81.20,-148.42 | 72.26 | 3.02 | 22 |
| 10 | 12/09/2022 | 06:51:21 | 81.20, 19.09 | 107.71 | 12/09/2022 | 06:51:01 | 81.20, 18.97 | 107.74 | 2.14 | 20 |
| 11 | 12/09/2022 | 07:41:57 | -81.20,-173.85 | 72.25 | 12/09/2022 | 07:41:47 | -81.20,-173.90 | 72.24 | 0.93 | 10 |
| 12 | 12/09/2022 | 08:32:42 | 81.20, -6.55 | 107.76 | 12/09/2022 | 08:32:33 | 81.20, -6.51 | 107.76 | 0.70 | 9 |
| 13 | 12/09/2022 | 09:23:17 | -81.20, 160.90 | 72.26 | 12/09/2022 | 09:23:18 | -81.20, 161.01 | 72.27 | 1.84 | 1 |
| 14 | 12/09/2022 | 10:14:02 | 81.20, -31.81 | 107.76 | 12/09/2022 | 10:14:05 | 81.20, -32.00 | 107.78 | 3.24 | 3 |
| 15 | 12/09/2022 | 11:04:37 | -81.20, 135.64 | 72.26 | 12/09/2022 | 11:04:50 | -81.20, 135.53 | 72.25 | 2.03 | 13 |
| 16 | 12/09/2022 | 11:55:22 | 81.20, -57.06 | 107.75 | 12/09/2022 | 11:55:36 | 81.20, -57.09 | 107.75 | 0.47 | 14 |
| 17 | 12/09/2022 | 12:45:57 | -81.20, 110.39 | 72.26 | 12/09/2022 | 12:46:21 | -81.20, 110.43 | 72.28 | 0.71 | 24 |
| 18 | 12/09/2022 | 13:36:42 | 81.20, -82.32 | 107.75 | 12/09/2022 | 13:37:07 | 81.20, -82.18 | 107.72 | 2.30 | 25 |
| 19 | 12/09/2022 | 14:27:17 | -81.19, 85.14 | 72.27 | 12/09/2022 | 14:27:53 | -81.20, 84.95 | 72.26 | 3.19 | 36 |
| 20 | 12/09/2022 | 15:18:02 | 81.20,-107.57 | 107.75 | 12/09/2022 | 15:18:39 | 81.20,-107.66 | 107.74 | 1.58 | 37 |
| 21 | 12/09/2022 | 16:08:37 | -81.19, 59.89 | 72.27 | 12/09/2022 | 16:09:24 | -81.20, 59.86 | 72.29 | 0.64 | 47 |
| 22 | 12/09/2022 | 16:59:23 | 81.20,-133.21 | 107.80 | 12/09/2022 | 17:00:11 | 81.20,-133.14 | 107.76 | 1.25 | 48 |
| 23 | 12/09/2022 | 17:49:58 | -81.20, 34.25 | 72.22 | 12/09/2022 | 17:50:56 | -81.20, 34.38 | 72.27 | 2.23 | 58 |
| 24 | 12/09/2022 | 18:40:42 | 81.19,-158.08 | 107.74 | 12/09/2022 | 18:41:42 | 81.20,-158.24 | 107.73 | 2.70 | 60 |
| 25 | 12/09/2022 | 19:31:18 | -81.20, 9.00 | 72.23 | 12/09/2022 | 19:32:28 | -81.20, 8.90 | 72.25 | 1.65 | 70 |

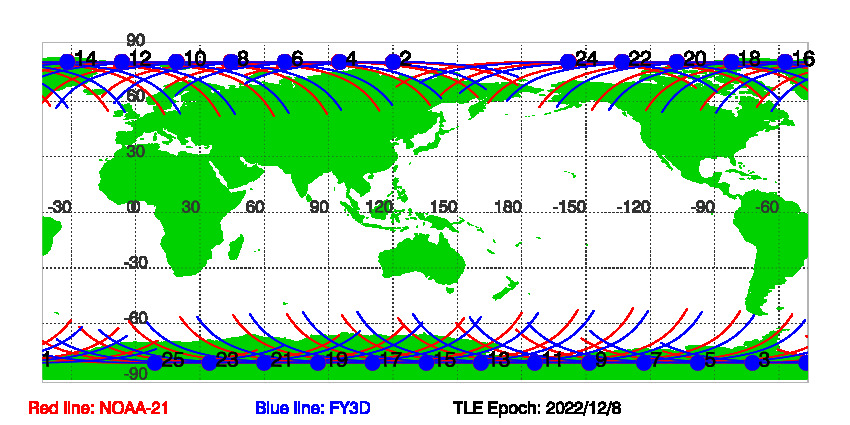

Figure of NOAA-21 and FY3D satellite orbits during SNOs since TLE Epoch: 12/8/2022
Download SNOs between NOAA-21 and FY3D since TLE EPOCH: 12/08/2022 in txt file.
Historial Predications of SNOs between NOAA-21 and FY3D
