Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/26/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 08/28/2025 | 17:07:44 | 74.15, -88.45 | 64.99 | 08/28/2025 | 17:07:59 | 74.18, -88.45 | 65.01 | 3.22 | 15 |
| 2 | 08/28/2025 | 17:58:27 | -74.10, 79.01 | 115.07 | 08/28/2025 | 17:57:21 | -74.11, 79.05 | 115.04 | 2.06 | 66 |
| 3 | 08/31/2025 | 03:29:23 | -74.15, -63.87 | 114.16 | 08/31/2025 | 03:29:37 | -74.18, -63.92 | 114.14 | 2.83 | 14 |
| 4 | 08/31/2025 | 04:20:07 | 74.07, 103.64 | 65.77 | 08/31/2025 | 04:18:56 | 74.09, 103.58 | 65.81 | 3.01 | 71 |
| 5 | 09/02/2025 | 13:51:04 | 74.19, -39.37 | 66.76 | 09/02/2025 | 13:51:11 | 74.19, -39.33 | 66.75 | 1.29 | 7 |
| 6 | 09/02/2025 | 14:41:47 | -74.13, 128.11 | 113.31 | 09/02/2025 | 14:40:33 | -74.13, 128.20 | 113.29 | 2.98 | 74 |
| 7 | 09/04/2025 | 23:22:11 | 74.80, 176.29 | 68.32 | 09/04/2025 | 23:23:18 | 74.68, 178.69 | 68.05 | 71.37 | 67 |
| 8 | 09/05/2025 | 00:12:43 | -74.19, -14.79 | 112.36 | 09/05/2025 | 00:12:48 | -74.21, -14.73 | 112.35 | 2.88 | 5 |
| 9 | 09/05/2025 | 01:03:22 | 73.88, 153.31 | 67.30 | 09/05/2025 | 01:02:11 | 73.91, 152.27 | 67.41 | 32.10 | 71 |
| 10 | 09/07/2025 | 09:43:48 | -74.70,-158.85 | 110.91 | 09/07/2025 | 09:44:57 | -74.59,-156.98 | 111.14 | 56.51 | 69 |
| 11 | 09/07/2025 | 10:34:23 | 74.20, 9.79 | 68.54 | 09/07/2025 | 10:34:22 | 74.18, 9.75 | 68.52 | 2.58 | 1 |
| 12 | 09/07/2025 | 11:25:00 | -73.83, 178.01 | 111.86 | 09/07/2025 | 11:23:49 | -73.87, 176.75 | 111.73 | 39.38 | 71 |

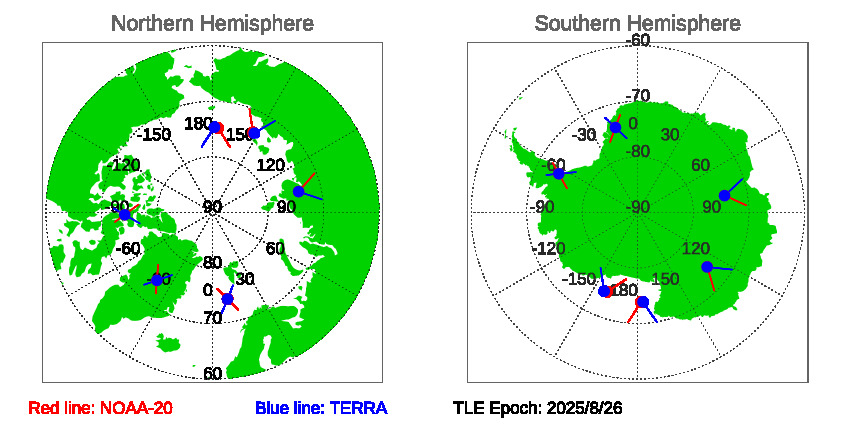

Figure of NOAA-20 and TERRA satellite orbits during SNOs since TLE Epoch: 8/26/2025
Download SNOs between NOAA-20 and TERRA since TLE EPOCH: 08/26/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and TERRA
