Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/12/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 05/13/2025 | 16:22:06 | -73.67, 103.94 | 124.73 | 05/13/2025 | 16:23:12 | -73.68, 103.86 | 124.72 | 3.22 | 66 |
| 2 | 05/13/2025 | 17:12:50 | 73.59, -88.56 | 55.18 | 05/13/2025 | 17:12:31 | 73.60, -88.63 | 55.20 | 2.74 | 19 |
| 3 | 05/16/2025 | 02:43:49 | 73.72, 128.39 | 54.76 | 05/16/2025 | 02:44:59 | 73.71, 128.41 | 54.73 | 1.52 | 70 |
| 4 | 05/16/2025 | 03:34:32 | -73.65, -64.12 | 125.33 | 05/16/2025 | 03:34:22 | -73.62, -64.12 | 125.36 | 3.68 | 10 |
| 5 | 05/18/2025 | 13:05:37 | -74.03, 152.23 | 125.44 | 05/18/2025 | 13:06:47 | -73.91, 153.33 | 125.63 | 36.23 | 70 |
| 6 | 05/18/2025 | 13:56:15 | 73.66, -39.58 | 54.15 | 05/18/2025 | 13:56:09 | 73.66, -39.52 | 54.15 | 1.86 | 6 |
| 7 | 05/18/2025 | 14:46:49 | -73.14, 128.92 | 126.44 | 05/18/2025 | 14:45:40 | -73.15, 127.11 | 126.31 | 58.43 | 69 |
| 8 | 05/20/2025 | 23:27:23 | 74.20, 176.38 | 54.25 | 05/20/2025 | 23:28:31 | 74.09, 178.23 | 54.03 | 57.27 | 68 |
| 9 | 05/21/2025 | 00:17:57 | -73.67, -15.03 | 126.35 | 05/21/2025 | 00:18:00 | -73.69, -14.97 | 126.33 | 2.79 | 3 |
| 10 | 05/21/2025 | 01:08:34 | 73.26, 153.24 | 53.19 | 05/21/2025 | 01:07:24 | 73.33, 151.97 | 53.35 | 41.49 | 70 |
| 11 | 05/23/2025 | 09:49:11 | -74.50,-159.83 | 125.88 | 05/23/2025 | 09:50:16 | -74.41,-156.56 | 126.16 | 97.95 | 65 |
| 12 | 05/23/2025 | 10:39:40 | 73.70, 9.48 | 53.22 | 05/23/2025 | 10:39:47 | 73.69, 9.52 | 53.19 | 2.16 | 7 |
| 13 | 05/23/2025 | 11:30:23 | -73.62, 176.99 | 126.88 | 05/23/2025 | 11:29:10 | -73.61, 177.02 | 126.89 | 1.92 | 73 |
| 14 | 05/25/2025 | 21:01:22 | -73.72, 34.02 | 127.21 | 05/25/2025 | 21:01:37 | -73.73, 34.11 | 127.21 | 2.83 | 15 |

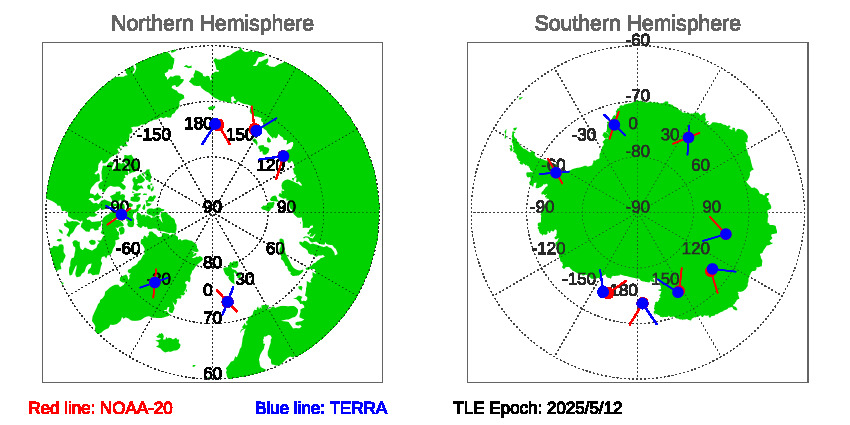

Figure of NOAA-20 and TERRA satellite orbits during SNOs since TLE Epoch: 5/12/2025
Download SNOs between NOAA-20 and TERRA since TLE EPOCH: 05/12/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and TERRA
