Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/4/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 04/04/2025 | 16:52:58 | -73.49, 96.60 | 112.27 | 04/04/2025 | 16:53:52 | -73.48, 96.55 | 112.29 | 1.78 | 54 |
| 2 | 04/04/2025 | 17:43:43 | 73.42, -95.94 | 67.65 | 04/04/2025 | 17:43:12 | 73.44, -95.86 | 67.67 | 2.89 | 31 |
| 3 | 04/07/2025 | 03:14:44 | 73.50, 121.14 | 66.82 | 04/07/2025 | 03:15:52 | 73.52, 121.09 | 66.83 | 3.03 | 68 |
| 4 | 04/07/2025 | 04:05:27 | -73.46, -71.45 | 113.24 | 04/07/2025 | 04:05:13 | -73.46, -71.37 | 113.24 | 2.63 | 14 |
| 5 | 04/09/2025 | 13:36:37 | -73.99, 144.54 | 113.55 | 04/09/2025 | 13:37:46 | -73.87, 146.28 | 113.78 | 55.29 | 69 |
| 6 | 04/09/2025 | 14:27:12 | 73.44, -46.85 | 65.83 | 04/09/2025 | 14:27:13 | 73.45, -46.94 | 65.84 | 2.76 | 1 |
| 7 | 04/09/2025 | 15:17:49 | -73.10, 121.23 | 114.57 | 04/09/2025 | 15:16:38 | -73.18, 120.20 | 114.41 | 34.43 | 71 |
| 8 | 04/12/2025 | 00:48:56 | -73.51, -22.43 | 115.00 | 04/12/2025 | 00:49:12 | -73.50, -22.38 | 115.02 | 2.18 | 16 |
| 9 | 04/12/2025 | 01:39:40 | 73.41, 145.10 | 64.88 | 04/12/2025 | 01:38:32 | 73.43, 145.16 | 64.92 | 3.29 | 68 |
| 10 | 04/14/2025 | 11:10:39 | 73.50, 2.17 | 64.10 | 04/14/2025 | 11:11:09 | 73.49, 2.07 | 64.09 | 3.24 | 30 |
| 11 | 04/14/2025 | 12:01:22 | -73.44, 169.60 | 115.97 | 04/14/2025 | 12:00:30 | -73.45, 169.65 | 115.96 | 1.63 | 52 |
| 12 | 04/16/2025 | 21:32:22 | -73.55, 26.63 | 116.72 | 04/16/2025 | 21:33:07 | -73.52, 26.59 | 116.75 | 3.03 | 45 |
| 13 | 04/16/2025 | 22:23:06 | 73.46,-165.85 | 63.17 | 04/16/2025 | 22:22:27 | 73.44,-165.90 | 63.17 | 2.45 | 39 |

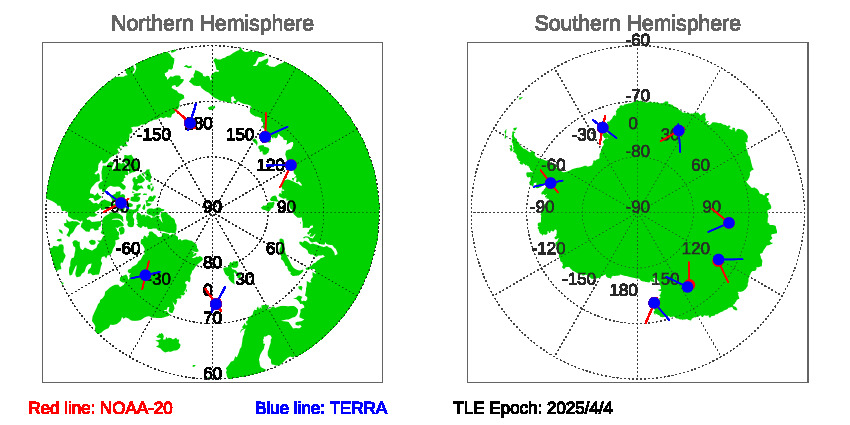

Figure of NOAA-20 and TERRA satellite orbits during SNOs since TLE Epoch: 4/4/2025
Download SNOs between NOAA-20 and TERRA since TLE EPOCH: 04/04/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and TERRA
