Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between NOAA-20 and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/25/2024
Index Date (NOAA-20) Time (NOAA-20) Lat,Lon (NOAA-20) SZA (NOAA-20 ) Date (TERRA) Time (TERRA) Lat,Lon (TERRA) SZA (TERRA ) Distance(km) Time Diff (sec)
1 09/25/2024 03:52:53 72.61, 113.62 73.64 09/25/2024 03:52:37 72.62, 113.72 73.65 3.47 16
2 09/25/2024 04:43:21 -71.79, -77.47 107.22 09/25/2024 04:42:14 -71.84, -79.99 107.07 87.66 67
3 09/27/2024 14:14:44 -73.51, 136.29 104.46 09/27/2024 14:15:49 -73.43, 139.39 104.64 98.40 65
4 09/27/2024 15:05:12 72.62, -54.49 74.61 09/27/2024 15:05:23 72.62, -54.51 74.60 0.86 11
5 09/27/2024 15:55:55 -72.57, 112.94 105.44 09/27/2024 15:54:47 -72.55, 113.01 105.46 3.15 68
6 09/30/2024 02:17:31 72.65, 137.38 75.59 09/30/2024 02:18:07 72.67, 137.36 75.61 3.17 36
7 09/30/2024 03:08:14 -72.59, -55.20 104.46 09/30/2024 03:07:31 -72.61, -55.11 104.45 3.27 43
8 10/02/2024 13:29:50 72.69, -30.78 76.58 10/02/2024 13:30:51 72.68, -30.86 76.56 2.60 61
9 10/02/2024 14:20:33 -72.63, 136.64 103.47 10/02/2024 14:20:15 -72.61, 136.68 103.49 2.34 18
10 10/05/2024 00:42:18 73.19, 160.06 78.06 10/05/2024 00:43:27 73.05, 161.64 77.87 53.30 69
11 10/05/2024 01:32:51 -72.63, -31.44 102.53 10/05/2024 01:32:58 -72.62, -31.53 102.54 3.25 7
12 10/05/2024 02:23:32 72.40, 136.34 77.25 10/05/2024 02:22:19 72.48, 135.89 77.34 17.73 73
13 10/07/2024 12:45:10 -72.70, 160.35 101.52 10/07/2024 12:45:39 -72.68, 160.37 101.54 2.09 29
14 10/07/2024 13:35:53 72.57, -32.07 78.36 10/07/2024 13:34:59 72.59, -32.13 78.39 3.14 54

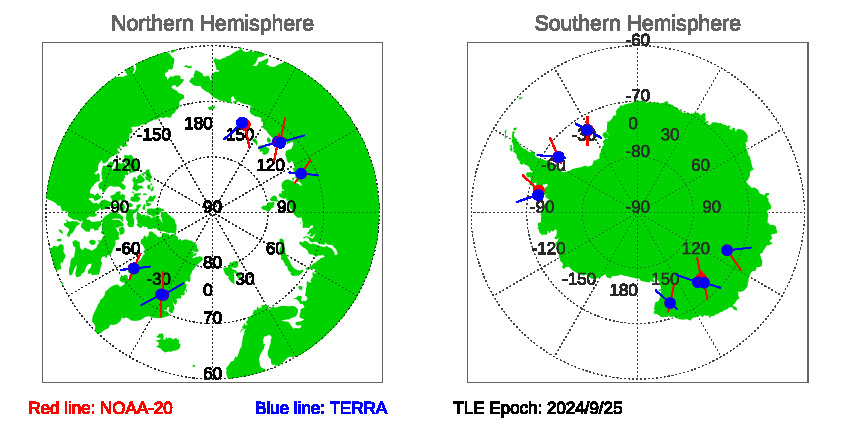

Figure of NOAA-20 and TERRA satellite orbits during SNOs since TLE Epoch: 9/25/2024

Download SNOs between NOAA-20 and TERRA since TLE EPOCH: 09/25/2024 in txt file.

Historial Predications of SNOs between NOAA-20 and TERRA
