Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between NOAA-20 and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/14/2024
Index Date (NOAA-20) Time (NOAA-20) Lat,Lon (NOAA-20) SZA (NOAA-20 ) Date (TERRA) Time (TERRA) Lat,Lon (TERRA) SZA (TERRA ) Distance(km) Time Diff (sec)
1 09/15/2024 05:22:06 72.59, 91.38 69.79 09/15/2024 05:22:44 72.60, 91.32 69.80 2.42 38
2 09/15/2024 06:12:49 -72.53,-101.18 110.26 09/15/2024 06:12:07 -72.55,-101.12 110.24 3.16 42
3 09/17/2024 16:34:26 72.62, -76.77 70.77 09/17/2024 16:35:21 72.63, -76.82 70.77 2.16 55
4 09/17/2024 17:25:09 -72.55, 90.67 109.29 09/17/2024 17:24:45 -72.53, 90.65 109.31 2.94 24
5 09/20/2024 03:46:46 72.67, 115.04 71.78 09/20/2024 03:47:56 72.65, 115.03 71.74 2.31 70
6 09/20/2024 04:37:28 -72.56, -77.41 108.34 09/20/2024 04:37:20 -72.56, -77.48 108.34 2.31 8
7 09/20/2024 05:27:59 71.82, 91.33 70.90 09/20/2024 05:26:52 71.84, 88.93 71.02 83.08 67
8 09/22/2024 14:59:13 73.10, -53.95 73.19 09/22/2024 15:00:22 73.04, -52.41 73.06 50.54 69
9 09/22/2024 15:49:47 -72.58, 114.45 107.36 09/22/2024 15:49:53 -72.58, 114.38 107.36 2.57 6
10 09/22/2024 16:40:27 72.31, -77.69 72.37 09/22/2024 16:39:15 72.39, -78.28 72.48 22.43 72
11 09/25/2024 03:02:06 -72.63, -53.73 106.35 09/25/2024 03:02:23 -72.64, -53.67 106.35 2.37 17
12 09/25/2024 03:52:49 72.51, 113.83 73.54 09/25/2024 03:51:44 72.51, 113.75 73.54 2.70 65
13 09/27/2024 14:14:24 -72.65, 138.15 105.38 09/27/2024 14:14:52 -72.65, 138.18 105.39 1.21 28
14 09/27/2024 15:05:07 72.53, -54.29 74.51 09/27/2024 15:04:12 72.56, -54.31 74.54 2.82 55

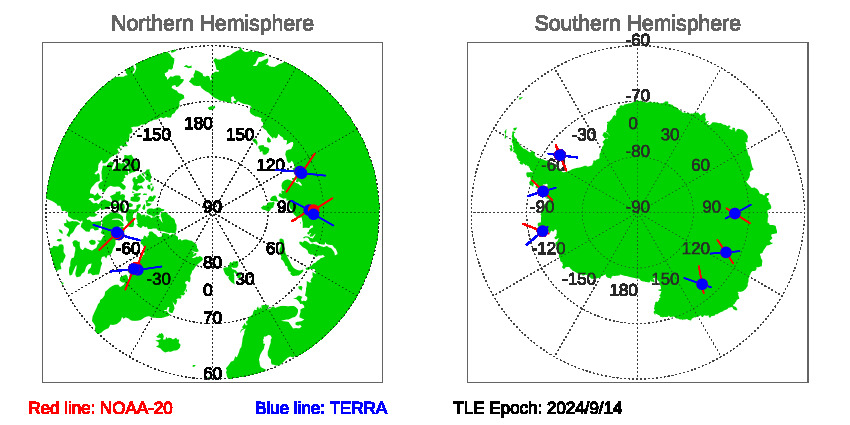

Figure of NOAA-20 and TERRA satellite orbits during SNOs since TLE Epoch: 9/14/2024

Download SNOs between NOAA-20 and TERRA since TLE EPOCH: 09/14/2024 in txt file.

Historial Predications of SNOs between NOAA-20 and TERRA
