Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 3/18/2021
Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 03/20/2021 | 01:40:04 | -69.07, -27.31 | 110.86 | 03/20/2021 | 01:41:14 | -68.99, -26.16 | 110.98 | 46.42 | 70 |
2 | 03/20/2021 | 02:30:39 | 68.46, 140.81 | 68.50 | 03/20/2021 | 02:30:48 | 68.49, 140.86 | 68.53 | 3.38 | 9 |
3 | 03/20/2021 | 03:21:20 | -68.33, -51.69 | 111.66 | 03/20/2021 | 03:20:19 | -68.32, -51.71 | 111.65 | 0.68 | 61 |
4 | 03/22/2021 | 17:56:49 | -68.56, 89.16 | 112.45 | 03/22/2021 | 17:57:49 | -68.54, 89.16 | 112.48 | 2.27 | 60 |
5 | 03/22/2021 | 18:47:33 | 68.44,-103.38 | 67.42 | 03/22/2021 | 18:47:16 | 68.42,-103.34 | 67.40 | 2.33 | 17 |
6 | 03/22/2021 | 19:38:05 | -67.82, 64.73 | 113.24 | 03/22/2021 | 19:36:54 | -67.87, 63.64 | 113.16 | 46.09 | 71 |
7 | 03/25/2021 | 10:13:43 | -68.54,-155.03 | 113.53 | 03/25/2021 | 10:14:16 | -68.53,-154.98 | 113.55 | 2.44 | 33 |
8 | 03/25/2021 | 11:04:26 | 68.36, 12.50 | 66.28 | 03/25/2021 | 11:03:44 | 68.35, 12.46 | 66.27 | 1.93 | 42 |
9 | 03/28/2021 | 01:39:58 | 68.82, 153.05 | 65.72 | 03/28/2021 | 01:41:10 | 68.73, 153.51 | 65.61 | 21.44 | 72 |
10 | 03/28/2021 | 02:30:35 | -68.46, -39.15 | 114.66 | 03/28/2021 | 02:30:43 | -68.46, -39.18 | 114.67 | 1.15 | 8 |
11 | 03/28/2021 | 03:21:19 | 68.34, 128.31 | 65.21 | 03/28/2021 | 03:20:10 | 68.34, 128.32 | 65.20 | 0.93 | 69 |
12 | 03/30/2021 | 17:56:47 | 68.53, -90.79 | 64.38 | 03/30/2021 | 17:57:40 | 68.53, -90.84 | 64.38 | 2.08 | 53 |
13 | 03/30/2021 | 18:47:29 | -68.44, 76.65 | 115.73 | 03/30/2021 | 18:47:10 | -68.44, 76.67 | 115.74 | 0.99 | 19 |
14 | 03/30/2021 | 19:37:58 | 67.52,-114.88 | 63.32 | 03/30/2021 | 19:36:50 | 67.58,-116.67 | 63.42 | 76.55 | 68 |

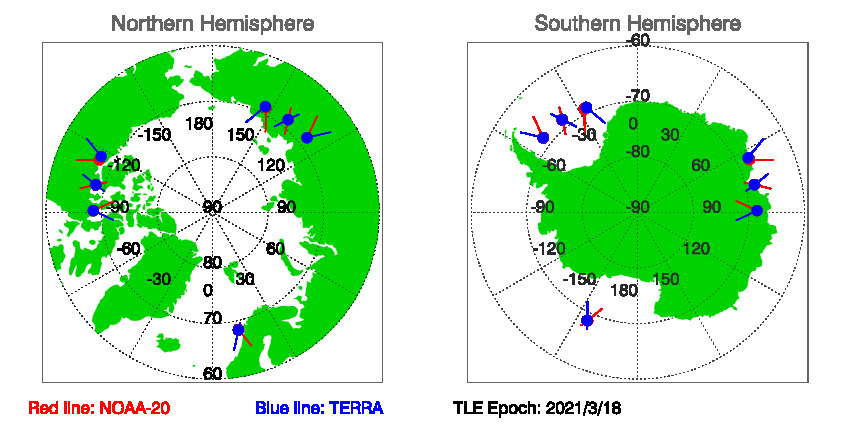

Figure of NOAA-20 and TERRA satellite orbits during SNOs since TLE Epoch: 3/18/2021
Download SNOs between NOAA-20 and TERRA since TLE EPOCH: 03/18/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and TERRA
