Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/29/2020
Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 07/31/2020 | 02:30:48 | -68.76, -39.61 | 129.48 | 07/31/2020 | 02:31:59 | -68.68, -38.82 | 129.58 | 32.97 | 71 |
2 | 07/31/2020 | 03:21:26 | 68.31, 128.29 | 50.06 | 07/31/2020 | 03:21:31 | 68.30, 128.35 | 50.05 | 2.87 | 5 |
3 | 07/31/2020 | 04:12:06 | -68.12, -64.16 | 130.12 | 07/31/2020 | 04:11:02 | -68.13, -64.21 | 130.11 | 2.39 | 64 |
4 | 08/02/2020 | 18:47:34 | -68.34, 76.71 | 129.23 | 08/02/2020 | 18:48:34 | -68.36, 76.66 | 129.22 | 2.59 | 60 |
5 | 08/02/2020 | 19:38:18 | 68.21,-115.82 | 50.65 | 08/02/2020 | 19:38:01 | 68.24,-115.83 | 50.68 | 3.30 | 17 |
6 | 08/02/2020 | 20:28:50 | -67.60, 52.26 | 129.98 | 08/02/2020 | 20:27:40 | -67.64, 51.09 | 129.91 | 49.73 | 70 |
7 | 08/05/2020 | 11:04:27 | -68.30,-167.47 | 128.56 | 08/05/2020 | 11:05:04 | -68.30,-167.53 | 128.56 | 2.47 | 37 |
8 | 08/05/2020 | 11:55:11 | 68.18, 0.00 | 51.33 | 08/05/2020 | 11:54:31 | 68.19, -0.02 | 51.34 | 1.42 | 40 |
9 | 08/08/2020 | 02:30:46 | 68.83, 140.29 | 52.73 | 08/08/2020 | 02:31:56 | 68.73, 141.25 | 52.61 | 40.01 | 70 |
10 | 08/08/2020 | 03:21:20 | -68.32, -51.71 | 127.79 | 08/08/2020 | 03:21:32 | -68.30, -51.65 | 127.81 | 3.23 | 12 |
11 | 08/08/2020 | 04:12:03 | 68.14, 115.82 | 52.04 | 08/08/2020 | 04:11:00 | 68.12, 115.79 | 52.03 | 2.19 | 63 |
12 | 08/10/2020 | 18:47:31 | 68.37,-103.32 | 53.03 | 08/10/2020 | 18:48:31 | 68.39,-103.29 | 53.05 | 2.91 | 60 |
13 | 08/10/2020 | 19:38:12 | -68.23, 64.18 | 127.11 | 08/10/2020 | 19:38:02 | -68.24, 64.16 | 127.10 | 1.49 | 10 |
14 | 08/10/2020 | 20:28:47 | 67.62,-127.76 | 52.28 | 08/10/2020 | 20:27:37 | 67.67,-128.86 | 52.36 | 46.94 | 70 |

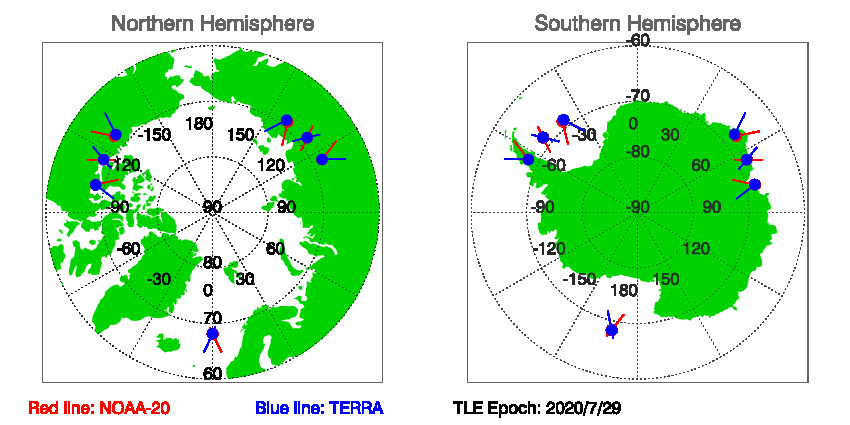

Figure of NOAA-20 and TERRA satellite orbits during SNOs since TLE Epoch: 7/29/2020
Download SNOs between NOAA-20 and TERRA since TLE EPOCH: 07/29/2020 in txt file.
Historical Predications of SNOs between NOAA-20 and TERRA
