Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/12/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 08/14/2025 | 15:41:11 | -79.71, 88.33 | 112.24 | 08/14/2025 | 15:41:38 | -79.73, 88.19 | 112.23 | 2.98 | 27 |
| 2 | 08/14/2025 | 16:31:50 | 79.51,-102.60 | 67.42 | 08/14/2025 | 16:30:44 | 79.52,-102.65 | 67.46 | 1.08 | 66 |
| 3 | 08/16/2025 | 20:07:41 | -79.85, 20.45 | 111.32 | 08/16/2025 | 20:08:44 | -79.84, 20.57 | 111.37 | 2.50 | 63 |
| 4 | 08/16/2025 | 20:58:18 | 79.59,-169.90 | 68.23 | 08/16/2025 | 20:57:49 | 79.60,-170.01 | 68.27 | 2.33 | 29 |
| 5 | 08/19/2025 | 01:24:48 | 79.74, 122.20 | 69.18 | 08/19/2025 | 01:24:55 | 79.74, 122.27 | 69.17 | 1.36 | 7 |
| 6 | 08/21/2025 | 05:51:14 | 79.76, 55.40 | 69.92 | 08/21/2025 | 05:51:58 | 79.77, 55.26 | 69.92 | 3.06 | 44 |
| 7 | 08/21/2025 | 06:41:55 | -79.64,-136.21 | 110.29 | 08/21/2025 | 06:41:04 | -79.63,-136.06 | 110.29 | 3.12 | 51 |
| 8 | 08/23/2025 | 11:08:20 | -79.63, 157.29 | 109.59 | 08/23/2025 | 11:08:06 | -79.64, 157.16 | 109.57 | 2.58 | 14 |
| 9 | 08/25/2025 | 15:34:51 | -79.81, 89.07 | 108.55 | 08/25/2025 | 15:35:12 | -79.80, 89.22 | 108.58 | 3.13 | 21 |

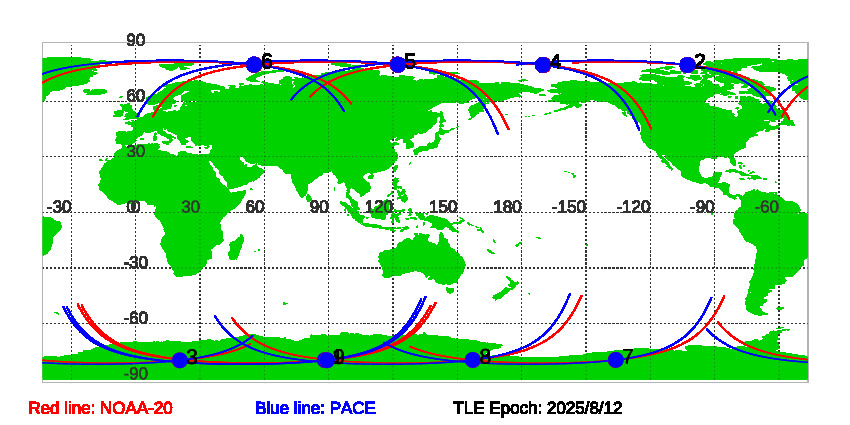

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 8/12/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 08/12/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
