Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/4/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 08/05/2025 | 20:14:00 | -79.76, 19.72 | 114.69 | 08/05/2025 | 20:15:04 | -79.76, 19.60 | 114.70 | 2.36 | 64 |
| 2 | 08/05/2025 | 21:04:40 | 79.58,-171.43 | 65.02 | 08/05/2025 | 21:04:11 | 79.59,-171.46 | 65.04 | 0.74 | 29 |
| 3 | 08/08/2025 | 01:31:08 | 79.66, 121.33 | 65.75 | 08/08/2025 | 01:31:17 | 79.67, 121.23 | 65.76 | 2.09 | 9 |
| 4 | 08/10/2025 | 05:57:38 | 79.79, 53.49 | 66.61 | 08/10/2025 | 05:58:24 | 79.79, 53.57 | 66.57 | 1.54 | 46 |
| 5 | 08/10/2025 | 06:48:15 | -79.56,-137.07 | 113.81 | 08/10/2025 | 06:47:27 | -79.55,-137.04 | 113.80 | 0.93 | 48 |
| 6 | 08/12/2025 | 11:14:45 | -79.69, 155.12 | 112.93 | 08/12/2025 | 11:14:34 | -79.68, 155.26 | 112.95 | 2.96 | 11 |
| 7 | 08/14/2025 | 15:41:11 | -79.70, 88.41 | 112.26 | 08/14/2025 | 15:41:38 | -79.71, 88.28 | 112.25 | 2.82 | 27 |
| 8 | 08/14/2025 | 16:31:50 | 79.51,-102.56 | 67.41 | 08/14/2025 | 16:30:44 | 79.51,-102.62 | 67.45 | 1.27 | 66 |
| 9 | 08/16/2025 | 20:07:42 | -79.87, 20.26 | 111.28 | 08/16/2025 | 20:08:45 | -79.87, 20.40 | 111.33 | 2.89 | 63 |

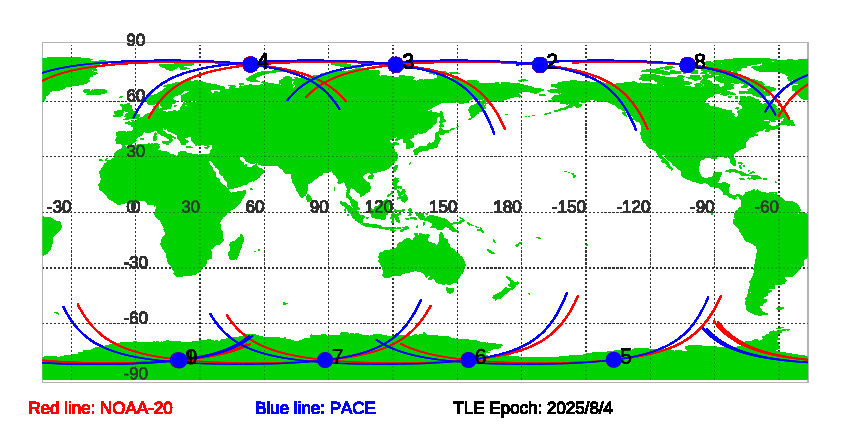

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 8/4/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 08/04/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
