Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/2/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 08/03/2025 | 15:47:32 | -79.69, 86.95 | 115.39 | 08/03/2025 | 15:47:58 | -79.70, 86.85 | 115.38 | 2.31 | 26 |
| 2 | 08/03/2025 | 16:38:11 | 79.48,-103.93 | 64.26 | 08/03/2025 | 16:37:04 | 79.48,-103.96 | 64.29 | 0.84 | 67 |
| 3 | 08/05/2025 | 20:14:00 | -79.76, 19.74 | 114.69 | 08/05/2025 | 20:15:04 | -79.76, 19.63 | 114.70 | 2.29 | 64 |
| 4 | 08/05/2025 | 21:04:40 | 79.58,-171.42 | 65.02 | 08/05/2025 | 21:04:11 | 79.59,-171.45 | 65.04 | 0.76 | 29 |
| 5 | 08/08/2025 | 01:31:08 | 79.66, 121.34 | 65.74 | 08/08/2025 | 01:31:17 | 79.66, 121.24 | 65.76 | 2.21 | 9 |
| 6 | 08/10/2025 | 05:57:38 | 79.79, 53.50 | 66.61 | 08/10/2025 | 05:58:24 | 79.79, 53.57 | 66.57 | 1.27 | 46 |
| 7 | 08/10/2025 | 06:48:15 | -79.55,-137.05 | 113.82 | 08/10/2025 | 06:47:27 | -79.55,-137.02 | 113.80 | 0.76 | 48 |
| 8 | 08/12/2025 | 11:14:45 | -79.69, 155.15 | 112.94 | 08/12/2025 | 11:14:34 | -79.68, 155.27 | 112.95 | 2.54 | 11 |
| 9 | 08/14/2025 | 15:41:13 | -79.76, 87.88 | 112.15 | 08/14/2025 | 15:41:39 | -79.75, 88.01 | 112.19 | 2.91 | 26 |

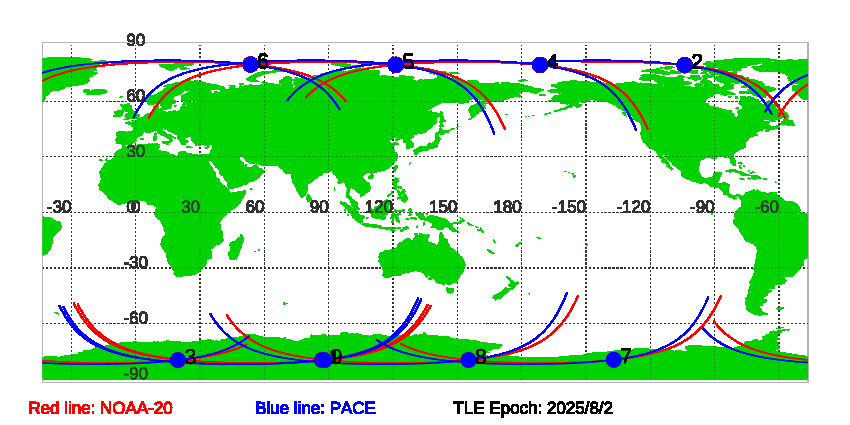

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 8/2/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 08/02/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
