Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/15/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 06/16/2025 | 06:28:23 | 79.57, 47.68 | 58.26 | 06/16/2025 | 06:28:38 | 79.57, 47.77 | 58.24 | 1.84 | 15 |
| 2 | 06/18/2025 | 10:54:51 | 79.65, -19.63 | 58.36 | 06/18/2025 | 10:55:49 | 79.65, -19.58 | 58.32 | 0.98 | 58 |
| 3 | 06/18/2025 | 11:45:30 | -79.47, 149.23 | 121.96 | 06/18/2025 | 11:44:55 | -79.46, 149.39 | 121.97 | 3.21 | 35 |
| 4 | 06/20/2025 | 16:11:59 | -79.55, 81.92 | 121.82 | 06/20/2025 | 16:12:07 | -79.55, 81.97 | 121.84 | 1.01 | 8 |
| 5 | 06/22/2025 | 20:38:27 | -79.61, 14.86 | 121.71 | 06/22/2025 | 20:39:18 | -79.62, 14.73 | 121.71 | 2.79 | 51 |
| 6 | 06/22/2025 | 21:29:04 | 79.33,-175.58 | 57.83 | 06/22/2025 | 21:28:21 | 79.34,-175.72 | 57.87 | 2.79 | 43 |
| 7 | 06/25/2025 | 01:55:35 | 79.49, 116.55 | 58.15 | 06/25/2025 | 01:55:34 | 79.50, 116.47 | 58.16 | 1.54 | 1 |
| 8 | 06/27/2025 | 06:22:05 | 79.61, 48.90 | 58.45 | 06/27/2025 | 06:22:46 | 79.62, 48.83 | 58.45 | 1.73 | 41 |

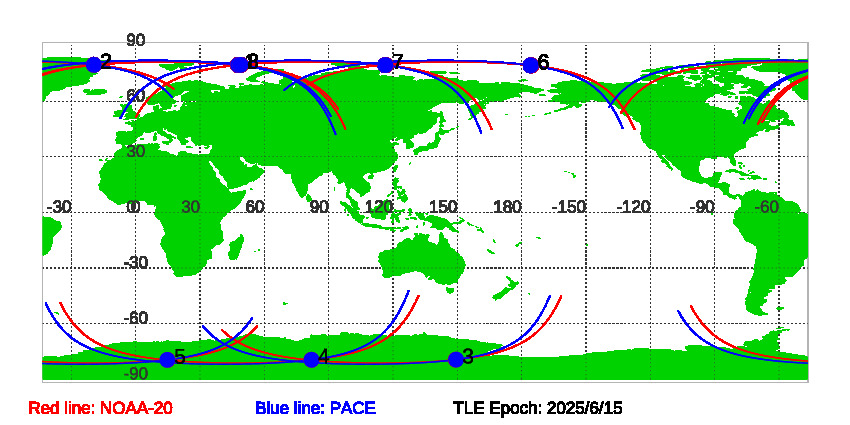

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 6/15/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 06/15/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
