Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/25/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 05/27/2025 | 11:07:16 | 79.38, -20.55 | 59.81 | 05/27/2025 | 11:07:08 | 79.38, -20.55 | 59.81 | 0.27 | 8 |
| 2 | 05/29/2025 | 15:33:48 | 79.54, -88.48 | 59.75 | 05/29/2025 | 15:34:25 | 79.54, -88.42 | 59.72 | 1.29 | 37 |
| 3 | 05/29/2025 | 16:24:25 | -79.28, 80.97 | 120.71 | 05/29/2025 | 16:23:29 | -79.27, 81.02 | 120.69 | 1.24 | 56 |
| 4 | 05/31/2025 | 20:50:57 | -79.44, 13.06 | 120.74 | 05/31/2025 | 20:50:46 | -79.44, 13.14 | 120.74 | 1.70 | 11 |
| 5 | 06/03/2025 | 01:17:27 | -79.54, -54.36 | 120.84 | 06/03/2025 | 01:18:01 | -79.54, -54.32 | 120.86 | 0.77 | 34 |
| 6 | 06/03/2025 | 02:08:05 | 79.31, 114.81 | 58.77 | 06/03/2025 | 02:07:05 | 79.30, 114.93 | 58.78 | 2.63 | 60 |
| 7 | 06/05/2025 | 06:34:35 | 79.41, 47.40 | 58.70 | 06/05/2025 | 06:34:20 | 79.42, 47.39 | 58.71 | 0.33 | 15 |
| 8 | 06/07/2025 | 11:01:06 | 79.55, -20.32 | 58.73 | 06/07/2025 | 11:01:35 | 79.54, -20.23 | 58.69 | 1.98 | 29 |

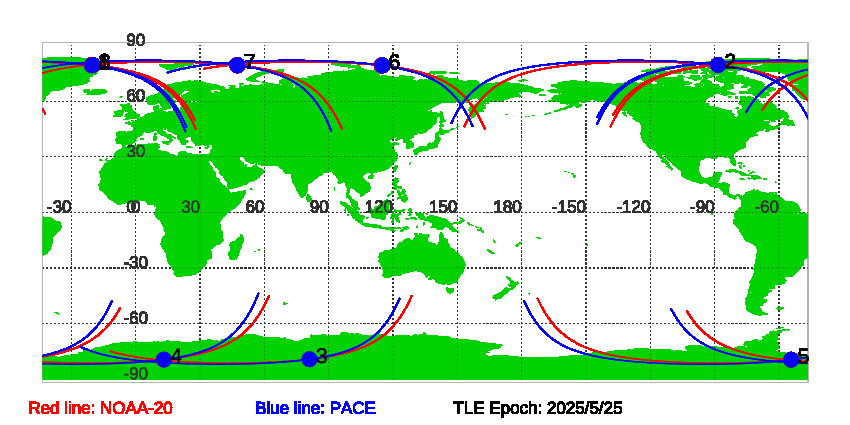

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 5/25/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 05/25/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
