Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/16/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 05/16/2025 | 10:22:48 | -79.48, 169.77 | 117.89 | 05/16/2025 | 10:23:30 | -79.48, 169.79 | 117.92 | 0.66 | 42 |
| 2 | 05/16/2025 | 11:13:25 | 79.21, -20.80 | 61.66 | 05/16/2025 | 11:12:34 | 79.21, -20.83 | 61.68 | 0.63 | 51 |
| 3 | 05/18/2025 | 15:39:57 | 79.37, -88.61 | 61.43 | 05/18/2025 | 15:39:52 | 79.37, -88.64 | 61.44 | 0.64 | 5 |
| 4 | 05/20/2025 | 20:06:27 | 79.46,-155.93 | 61.13 | 05/20/2025 | 20:07:08 | 79.46,-156.04 | 61.12 | 2.14 | 41 |
| 5 | 05/20/2025 | 20:57:04 | -79.18, 13.50 | 119.33 | 05/20/2025 | 20:56:12 | -79.19, 13.36 | 119.29 | 3.05 | 52 |
| 6 | 05/23/2025 | 01:23:37 | -79.38, -54.59 | 119.44 | 05/23/2025 | 01:23:30 | -79.37, -54.57 | 119.44 | 0.72 | 7 |
| 7 | 05/25/2025 | 05:50:10 | -79.57,-122.75 | 119.51 | 05/25/2025 | 05:50:48 | -79.56,-122.62 | 119.55 | 2.84 | 38 |
| 8 | 05/25/2025 | 06:40:45 | 79.24, 47.18 | 59.94 | 05/25/2025 | 06:39:50 | 79.24, 47.15 | 59.96 | 0.58 | 55 |
| 9 | 05/27/2025 | 11:07:16 | 79.37, -20.44 | 59.79 | 05/27/2025 | 11:07:06 | 79.37, -20.47 | 59.79 | 0.60 | 10 |
| 10 | 05/29/2025 | 15:33:46 | 79.47, -87.83 | 59.62 | 05/29/2025 | 15:34:21 | 79.47, -87.94 | 59.61 | 2.14 | 35 |

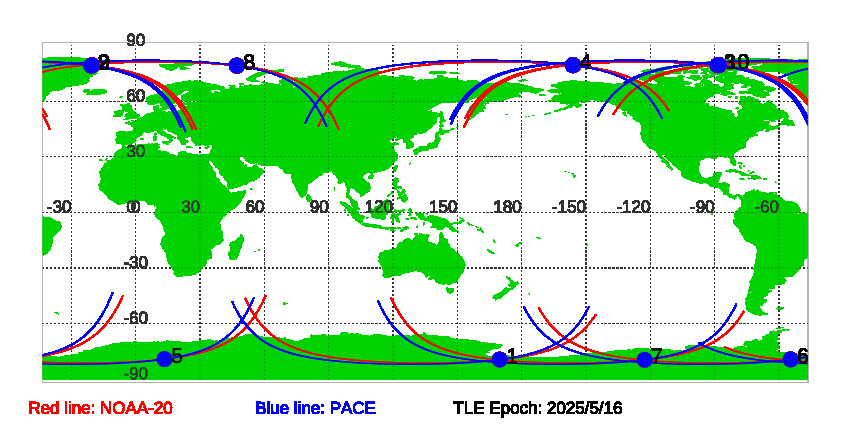

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 5/16/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 05/16/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
