Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/14/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 05/14/2025 | 05:56:26 | -79.67,-125.25 | 117.06 | 05/14/2025 | 05:56:22 | -79.67,-125.14 | 117.07 | 2.09 | 4 |
| 2 | 05/16/2025 | 10:22:57 | -79.78, 167.16 | 117.37 | 05/16/2025 | 10:23:33 | -79.77, 167.31 | 117.41 | 2.91 | 36 |
| 3 | 05/16/2025 | 11:13:34 | 79.53, -23.31 | 62.18 | 05/16/2025 | 11:12:37 | 79.53, -23.22 | 62.20 | 1.81 | 57 |
| 4 | 05/18/2025 | 14:51:02 | -81.30, 66.01 | 112.42 | 05/18/2025 | 14:52:15 | -81.90, 66.25 | 112.32 | 67.24 | 73 |
| 5 | 05/18/2025 | 15:40:03 | 79.58, -90.36 | 61.79 | 05/18/2025 | 15:39:46 | 79.58, -90.36 | 61.80 | 0.28 | 17 |
| 6 | 05/20/2025 | 20:06:35 | 79.73,-158.27 | 61.60 | 05/20/2025 | 20:06:57 | 79.72,-158.13 | 61.56 | 3.14 | 22 |
| 7 | 05/20/2025 | 20:57:12 | -79.47, 11.29 | 118.87 | 05/20/2025 | 20:56:01 | -79.47, 11.33 | 118.84 | 0.88 | 71 |
| 8 | 05/23/2025 | 00:33:03 | 79.75, 134.91 | 61.22 | 05/23/2025 | 00:34:05 | 79.76, 134.81 | 61.20 | 2.05 | 62 |
| 9 | 05/23/2025 | 01:23:43 | -79.59, -56.32 | 119.08 | 05/23/2025 | 01:23:11 | -79.58, -56.20 | 119.09 | 2.60 | 32 |
| 10 | 05/25/2025 | 05:50:13 | -79.68,-123.70 | 119.32 | 05/25/2025 | 05:50:20 | -79.66,-123.59 | 119.35 | 2.59 | 7 |
| 11 | 05/27/2025 | 10:16:43 | -79.76, 168.89 | 119.53 | 05/27/2025 | 10:17:29 | -79.76, 168.93 | 119.56 | 0.80 | 46 |

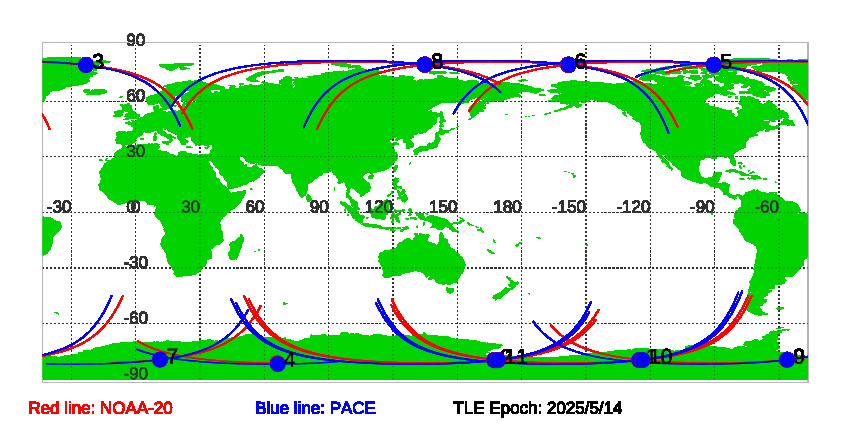

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 5/14/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 05/14/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
