Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/11/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 05/12/2025 | 00:39:15 | 79.72, 133.63 | 63.57 | 05/12/2025 | 00:40:05 | 79.73, 133.52 | 63.57 | 2.27 | 50 |
| 2 | 05/12/2025 | 01:29:54 | -79.53, -57.39 | 116.77 | 05/12/2025 | 01:29:10 | -79.53, -57.40 | 116.75 | 0.44 | 44 |
| 3 | 05/14/2025 | 05:56:26 | -79.67,-125.21 | 117.06 | 05/14/2025 | 05:56:22 | -79.66,-125.11 | 117.08 | 2.04 | 4 |
| 4 | 05/16/2025 | 10:22:56 | -79.74, 167.49 | 117.44 | 05/16/2025 | 10:23:32 | -79.74, 167.60 | 117.47 | 2.44 | 36 |
| 5 | 05/16/2025 | 11:13:33 | 79.49, -23.02 | 62.12 | 05/16/2025 | 11:12:36 | 79.49, -22.97 | 62.14 | 1.19 | 57 |
| 6 | 05/18/2025 | 14:50:54 | -81.30, 69.21 | 112.87 | 05/18/2025 | 14:52:07 | -81.85, 69.68 | 112.79 | 61.56 | 73 |
| 7 | 05/18/2025 | 15:40:03 | 79.58, -90.33 | 61.79 | 05/18/2025 | 15:39:46 | 79.58, -90.38 | 61.80 | 1.15 | 17 |
| 8 | 05/20/2025 | 20:06:34 | 79.69,-157.96 | 61.54 | 05/20/2025 | 20:06:56 | 79.69,-157.91 | 61.52 | 1.01 | 22 |
| 9 | 05/20/2025 | 20:57:11 | -79.43, 11.61 | 118.93 | 05/20/2025 | 20:56:00 | -79.43, 11.56 | 118.89 | 1.19 | 71 |
| 10 | 05/23/2025 | 00:33:05 | 79.81, 134.38 | 61.32 | 05/23/2025 | 00:34:06 | 79.81, 134.44 | 61.28 | 1.17 | 61 |

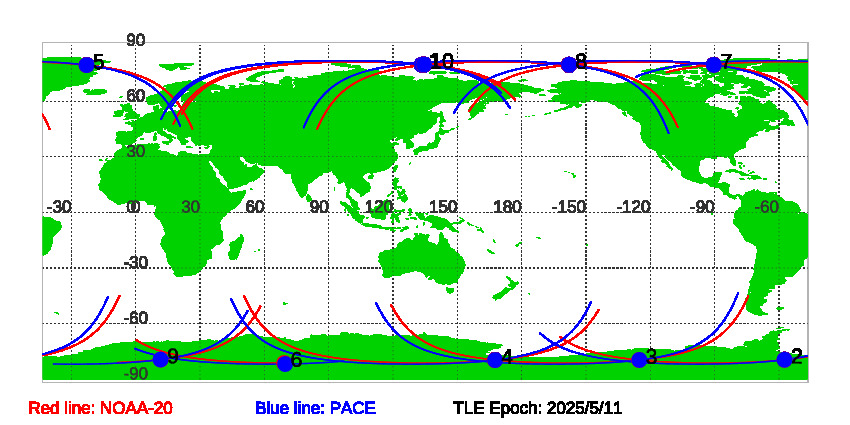

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 5/11/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 05/11/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
