Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/10/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 05/12/2025 | 00:39:15 | 79.71, 133.73 | 63.55 | 05/12/2025 | 00:40:05 | 79.71, 133.62 | 63.54 | 2.18 | 50 |
| 2 | 05/12/2025 | 01:29:54 | -79.52, -57.29 | 116.80 | 05/12/2025 | 01:29:10 | -79.52, -57.29 | 116.78 | 0.15 | 44 |
| 3 | 05/14/2025 | 05:56:26 | -79.66,-125.11 | 117.09 | 05/14/2025 | 05:56:22 | -79.65,-125.01 | 117.10 | 2.20 | 4 |
| 4 | 05/16/2025 | 10:22:57 | -79.77, 167.30 | 117.40 | 05/16/2025 | 10:23:33 | -79.76, 167.42 | 117.44 | 2.52 | 36 |
| 5 | 05/16/2025 | 11:13:34 | 79.52, -23.21 | 62.16 | 05/16/2025 | 11:12:37 | 79.52, -23.15 | 62.18 | 1.22 | 57 |
| 6 | 05/18/2025 | 14:50:55 | -81.30, 68.92 | 112.83 | 05/18/2025 | 14:52:08 | -81.86, 69.37 | 112.75 | 62.07 | 73 |
| 7 | 05/18/2025 | 15:40:03 | 79.57, -90.26 | 61.77 | 05/18/2025 | 15:39:46 | 79.57, -90.32 | 61.79 | 1.23 | 17 |
| 8 | 05/20/2025 | 20:06:34 | 79.69,-157.90 | 61.53 | 05/20/2025 | 20:06:56 | 79.68,-157.87 | 61.51 | 0.76 | 22 |
| 9 | 05/20/2025 | 20:57:11 | -79.42, 11.67 | 118.94 | 05/20/2025 | 20:56:00 | -79.43, 11.61 | 118.90 | 1.38 | 71 |
| 10 | 05/23/2025 | 00:33:04 | 79.77, 134.71 | 61.26 | 05/23/2025 | 00:34:05 | 79.77, 134.73 | 61.22 | 0.72 | 61 |

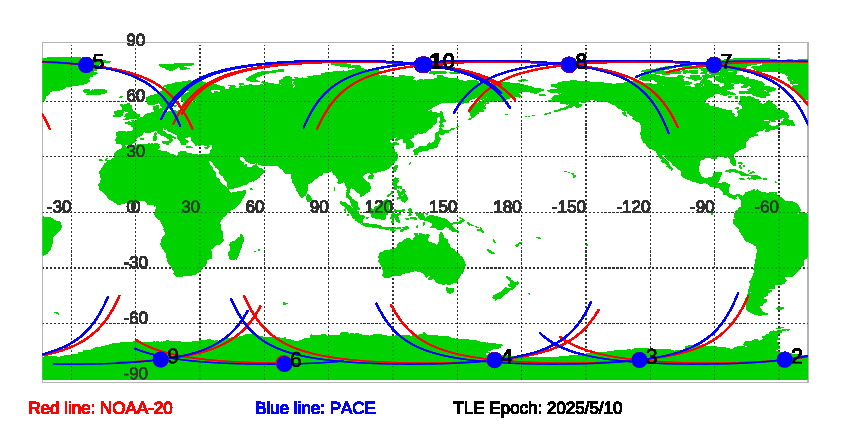

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 5/10/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 05/10/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
