Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/6/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 05/07/2025 | 14:55:37 | -79.79, 98.89 | 115.15 | 05/07/2025 | 14:56:38 | -79.79, 98.89 | 115.18 | 0.25 | 61 |
| 2 | 05/07/2025 | 15:46:15 | 79.57, -91.84 | 64.46 | 05/07/2025 | 15:45:43 | 79.57, -91.79 | 64.46 | 0.88 | 32 |
| 3 | 05/09/2025 | 20:12:45 | 79.65,-159.10 | 64.00 | 05/09/2025 | 20:12:54 | 79.64,-159.10 | 63.99 | 0.33 | 9 |
| 4 | 05/12/2025 | 00:39:14 | 79.69, 133.89 | 63.52 | 05/12/2025 | 00:40:04 | 79.70, 133.74 | 63.52 | 3.23 | 50 |
| 5 | 05/12/2025 | 01:29:53 | -79.49, -57.11 | 116.83 | 05/12/2025 | 01:29:09 | -79.50, -57.16 | 116.81 | 1.07 | 44 |
| 6 | 05/14/2025 | 05:56:25 | -79.64,-124.94 | 117.12 | 05/14/2025 | 05:56:21 | -79.64,-124.93 | 117.12 | 0.27 | 4 |
| 7 | 05/16/2025 | 10:22:54 | -79.69, 168.01 | 117.54 | 05/16/2025 | 10:23:30 | -79.69, 167.94 | 117.55 | 1.28 | 36 |
| 8 | 05/16/2025 | 11:13:31 | 79.44, -22.55 | 62.03 | 05/16/2025 | 11:12:34 | 79.45, -22.67 | 62.07 | 2.72 | 57 |
| 9 | 05/18/2025 | 14:50:19 | -81.04, 82.51 | 114.81 | 05/18/2025 | 14:51:32 | -81.35, 83.40 | 114.79 | 37.53 | 73 |

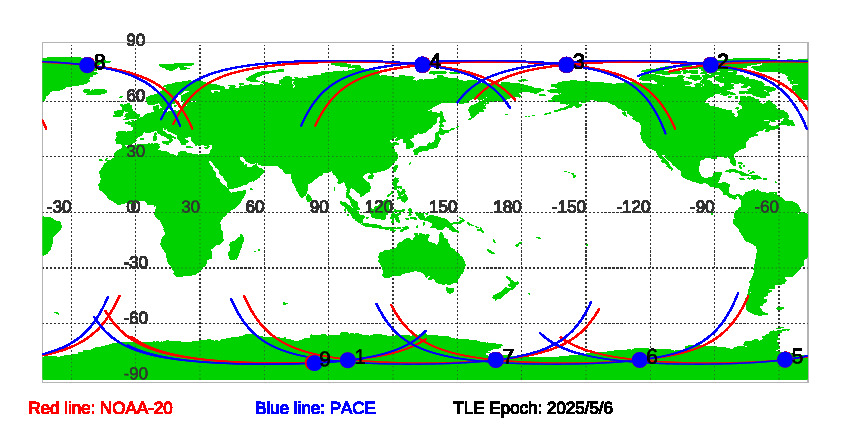

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 5/6/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 05/06/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
