Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/4/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 05/05/2025 | 10:29:05 | -79.66, 166.67 | 114.77 | 05/05/2025 | 10:29:25 | -79.67, 166.58 | 114.77 | 1.95 | 20 |
| 2 | 05/05/2025 | 11:19:43 | 79.43, -24.09 | 64.83 | 05/05/2025 | 11:18:30 | 79.44, -24.11 | 64.87 | 0.49 | 73 |
| 3 | 05/07/2025 | 14:55:37 | -79.79, 98.88 | 115.15 | 05/07/2025 | 14:56:38 | -79.79, 98.89 | 115.18 | 0.24 | 61 |
| 4 | 05/07/2025 | 15:46:15 | 79.57, -91.85 | 64.46 | 05/07/2025 | 15:45:43 | 79.57, -91.81 | 64.47 | 0.95 | 32 |
| 5 | 05/09/2025 | 20:12:45 | 79.65,-159.12 | 64.01 | 05/09/2025 | 20:12:54 | 79.65,-159.14 | 64.00 | 0.37 | 9 |
| 6 | 05/12/2025 | 00:39:17 | 79.79, 133.00 | 63.70 | 05/12/2025 | 00:40:06 | 79.78, 133.10 | 63.66 | 2.01 | 49 |
| 7 | 05/12/2025 | 01:29:53 | -79.50, -57.13 | 116.83 | 05/12/2025 | 01:29:09 | -79.51, -57.23 | 116.79 | 2.23 | 44 |
| 8 | 05/14/2025 | 05:56:23 | -79.58,-124.43 | 117.22 | 05/14/2025 | 05:56:19 | -79.58,-124.53 | 117.21 | 2.16 | 4 |
| 9 | 05/16/2025 | 10:22:56 | -79.76, 167.39 | 117.42 | 05/16/2025 | 10:23:31 | -79.75, 167.47 | 117.44 | 1.62 | 35 |

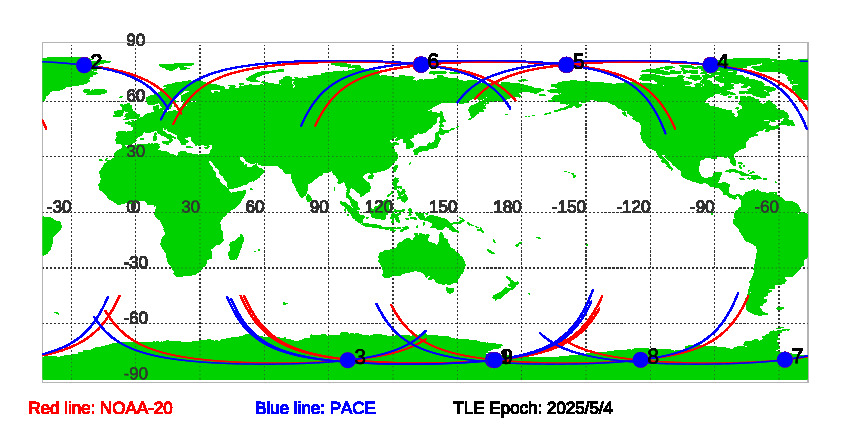

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 5/4/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 05/04/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
