Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/28/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 04/28/2025 | 20:18:55 | 79.62,-160.40 | 67.12 | 04/28/2025 | 20:18:42 | 79.61,-160.34 | 67.12 | 1.26 | 13 |
| 2 | 05/01/2025 | 00:45:25 | 79.68, 132.46 | 66.55 | 05/01/2025 | 00:45:55 | 79.68, 132.36 | 66.55 | 2.10 | 30 |
| 3 | 05/01/2025 | 01:36:02 | -79.42, -58.06 | 113.90 | 05/01/2025 | 01:34:58 | -79.42, -58.15 | 113.86 | 1.97 | 64 |
| 4 | 05/03/2025 | 05:11:56 | 79.77, 64.99 | 66.07 | 05/03/2025 | 05:13:08 | 79.78, 64.86 | 66.05 | 2.88 | 72 |
| 5 | 05/03/2025 | 06:02:34 | -79.55,-125.73 | 114.34 | 05/03/2025 | 06:02:12 | -79.56,-125.84 | 114.31 | 2.45 | 22 |
| 6 | 05/05/2025 | 10:29:06 | -79.68, 166.53 | 114.74 | 05/05/2025 | 10:29:25 | -79.68, 166.52 | 114.75 | 0.34 | 19 |
| 7 | 05/05/2025 | 11:19:24 | 78.75, -19.18 | 63.75 | 05/05/2025 | 11:18:11 | 78.68, -19.62 | 63.77 | 12.44 | 73 |
| 8 | 05/07/2025 | 14:55:36 | -79.75, 99.30 | 115.23 | 05/07/2025 | 14:56:36 | -79.75, 99.20 | 115.25 | 2.04 | 60 |
| 9 | 05/07/2025 | 15:46:14 | 79.53, -91.48 | 64.39 | 05/07/2025 | 15:45:41 | 79.54, -91.55 | 64.41 | 1.46 | 33 |
| 10 | 05/09/2025 | 20:12:45 | 79.64,-159.03 | 63.99 | 05/09/2025 | 20:12:52 | 79.64,-159.09 | 63.99 | 1.23 | 7 |
| 11 | 05/12/2025 | 00:39:17 | 79.78, 133.08 | 63.68 | 05/12/2025 | 00:40:03 | 79.78, 133.16 | 63.65 | 1.61 | 46 |

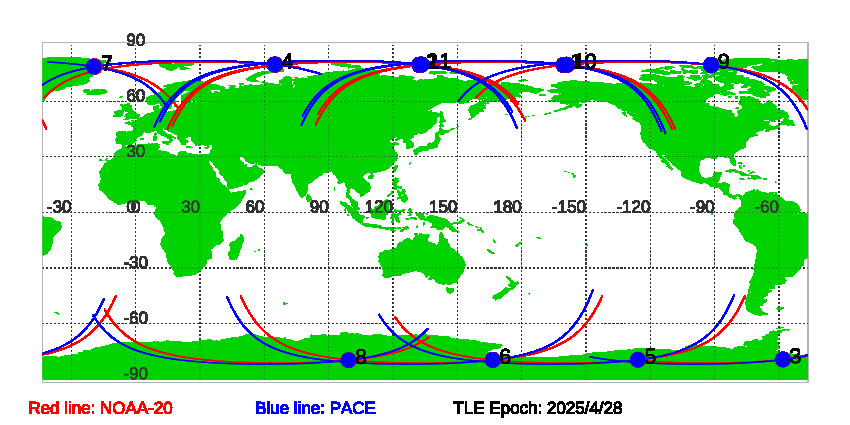

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 4/28/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 04/28/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
