Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/19/2025
Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
1 | 04/20/2025 | 00:51:31 | 79.61, 131.51 | 70.02 | 04/20/2025 | 00:51:29 | 79.61, 131.46 | 70.03 | 0.98 | 2 |
2 | 04/22/2025 | 05:18:03 | 79.72, 63.95 | 69.46 | 04/22/2025 | 05:18:46 | 79.72, 63.90 | 69.44 | 0.97 | 43 |
3 | 04/22/2025 | 06:08:41 | -79.50,-126.86 | 110.94 | 04/22/2025 | 06:07:50 | -79.51,-126.91 | 110.90 | 1.25 | 51 |
4 | 04/24/2025 | 10:35:15 | -79.67, 165.04 | 111.37 | 04/24/2025 | 10:35:08 | -79.67, 165.15 | 111.38 | 2.25 | 7 |
5 | 04/26/2025 | 15:01:47 | -79.78, 97.43 | 111.89 | 04/26/2025 | 15:02:24 | -79.78, 97.57 | 111.93 | 2.76 | 37 |
6 | 04/26/2025 | 15:52:22 | 79.46, -92.47 | 67.55 | 04/26/2025 | 15:51:27 | 79.46, -92.52 | 67.58 | 1.13 | 55 |
7 | 04/28/2025 | 20:18:56 | 79.65,-160.66 | 67.17 | 04/28/2025 | 20:18:44 | 79.64,-160.54 | 67.16 | 2.47 | 12 |
8 | 05/01/2025 | 00:45:28 | 79.77, 131.64 | 66.71 | 05/01/2025 | 00:45:59 | 79.76, 131.78 | 66.68 | 3.01 | 31 |
9 | 05/01/2025 | 01:36:02 | -79.41, -57.98 | 113.92 | 05/01/2025 | 01:35:00 | -79.42, -58.12 | 113.87 | 2.83 | 62 |

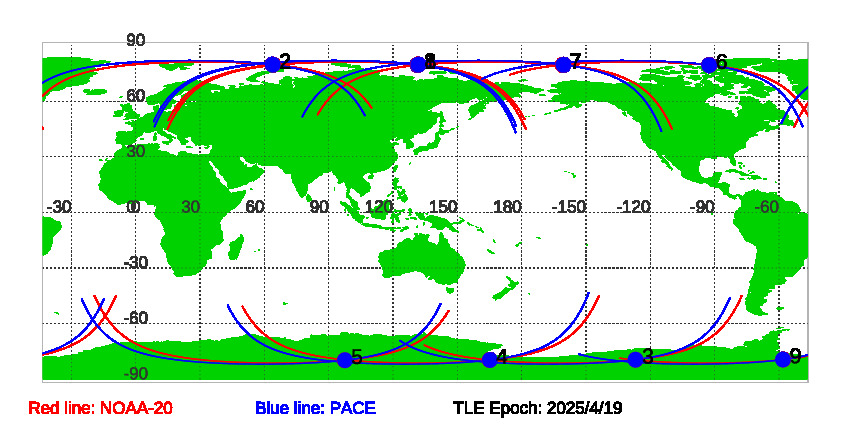

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 4/19/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 04/19/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
