Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/15/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 04/15/2025 | 15:07:49 | -79.65, 97.07 | 108.36 | 04/15/2025 | 15:07:48 | -79.66, 97.07 | 108.35 | 0.36 | 1 |
| 2 | 04/17/2025 | 19:34:21 | -79.75, 29.62 | 108.97 | 04/17/2025 | 19:35:06 | -79.75, 29.58 | 108.99 | 0.90 | 45 |
| 3 | 04/17/2025 | 20:25:00 | 79.55,-161.31 | 70.67 | 04/17/2025 | 20:24:12 | 79.54,-161.21 | 70.67 | 2.29 | 48 |
| 4 | 04/20/2025 | 00:51:30 | 79.58, 131.74 | 69.97 | 04/20/2025 | 00:51:28 | 79.59, 131.62 | 69.99 | 2.52 | 2 |
| 5 | 04/22/2025 | 05:18:04 | 79.75, 63.62 | 69.52 | 04/22/2025 | 05:18:46 | 79.75, 63.69 | 69.49 | 1.64 | 42 |
| 6 | 04/22/2025 | 06:08:42 | -79.54,-127.15 | 110.88 | 04/22/2025 | 06:07:50 | -79.53,-127.08 | 110.86 | 1.41 | 52 |
| 7 | 04/24/2025 | 10:35:14 | -79.64, 165.29 | 111.42 | 04/24/2025 | 10:35:06 | -79.64, 165.37 | 111.43 | 1.57 | 8 |
| 8 | 04/26/2025 | 15:01:44 | -79.69, 98.25 | 112.05 | 04/26/2025 | 15:02:20 | -79.70, 98.14 | 112.05 | 2.16 | 36 |
| 9 | 04/26/2025 | 15:52:23 | 79.50, -92.79 | 67.62 | 04/26/2025 | 15:51:26 | 79.50, -92.78 | 67.64 | 0.25 | 57 |

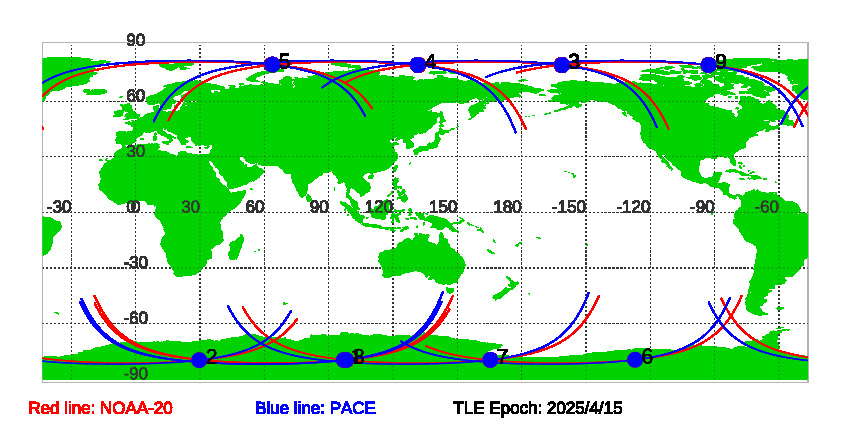

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 4/15/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 04/15/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
