Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/5/2025
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 04/06/2025 | 19:40:21 | -79.61, 29.33 | 105.16 | 04/06/2025 | 19:40:17 | -79.61, 29.27 | 105.15 | 1.25 | 4 |
| 2 | 04/09/2025 | 00:06:56 | -79.78, -38.83 | 105.69 | 04/09/2025 | 00:07:40 | -79.77, -38.72 | 105.73 | 2.33 | 44 |
| 3 | 04/09/2025 | 00:57:32 | 79.48, 131.12 | 73.78 | 04/09/2025 | 00:56:44 | 79.48, 131.04 | 73.81 | 1.62 | 48 |
| 4 | 04/11/2025 | 05:24:05 | 79.60, 63.46 | 73.17 | 04/11/2025 | 05:24:05 | 79.60, 63.37 | 73.18 | 1.84 | 0 |
| 5 | 04/13/2025 | 09:50:39 | 79.76, -4.57 | 72.64 | 04/13/2025 | 09:51:26 | 79.76, -4.55 | 72.61 | 0.48 | 47 |
| 6 | 04/13/2025 | 10:41:16 | -79.55, 164.62 | 107.75 | 04/13/2025 | 10:40:29 | -79.54, 164.67 | 107.73 | 0.89 | 47 |
| 7 | 04/15/2025 | 15:07:47 | -79.61, 97.42 | 108.43 | 04/15/2025 | 15:07:47 | -79.62, 97.37 | 108.42 | 1.11 | 0 |
| 8 | 04/17/2025 | 19:34:20 | -79.75, 29.59 | 108.96 | 04/17/2025 | 19:35:06 | -79.75, 29.57 | 108.98 | 0.49 | 46 |

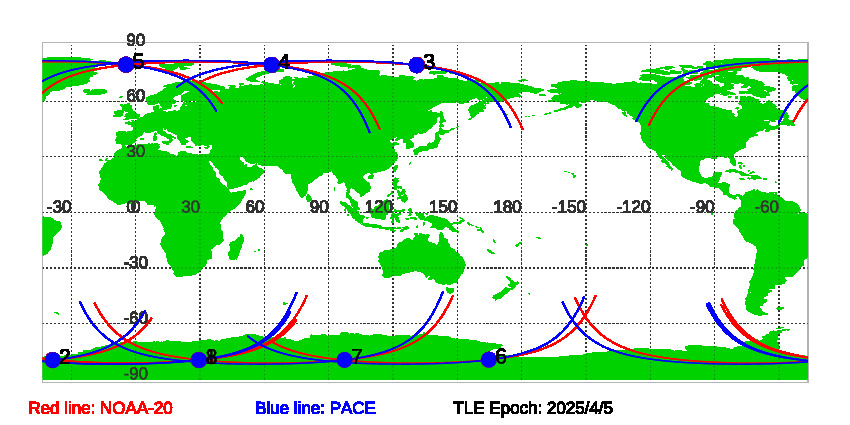

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 4/5/2025
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 04/05/2025 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
