Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/22/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 12/22/2024 | 10:41:33 | -79.84, 162.05 | 74.83 | 12/22/2024 | 10:42:44 | -79.85, 161.91 | 74.83 | 2.96 | 71 |
| 2 | 12/22/2024 | 11:32:12 | 79.65, -28.91 | 104.85 | 12/22/2024 | 11:31:48 | 79.65, -28.95 | 104.87 | 1.06 | 24 |
| 3 | 12/24/2024 | 15:08:03 | -79.86, 95.26 | 74.80 | 12/24/2024 | 15:08:52 | -79.85, 95.35 | 74.84 | 1.82 | 49 |
| 4 | 12/24/2024 | 15:58:39 | 79.57, -94.88 | 104.71 | 12/24/2024 | 15:57:54 | 79.58, -94.99 | 104.75 | 2.39 | 45 |
| 5 | 12/26/2024 | 19:34:31 | -79.82, 29.00 | 74.92 | 12/26/2024 | 19:34:58 | -79.81, 29.12 | 74.95 | 2.52 | 27 |
| 6 | 12/26/2024 | 20:25:07 | 79.54,-161.18 | 104.60 | 12/26/2024 | 20:24:00 | 79.54,-161.24 | 104.64 | 1.35 | 67 |
| 7 | 12/29/2024 | 00:00:57 | -79.72, -36.74 | 75.17 | 12/29/2024 | 00:01:02 | -79.73, -36.78 | 75.16 | 0.89 | 5 |
| 8 | 12/31/2024 | 03:38:21 | 81.31, 53.73 | 110.19 | 12/31/2024 | 03:39:34 | 81.92, 53.79 | 110.36 | 67.43 | 73 |
| 9 | 12/31/2024 | 04:27:23 | -79.63,-102.54 | 75.45 | 12/31/2024 | 04:27:05 | -79.63,-102.63 | 75.43 | 1.89 | 18 |
| 10 | 01/02/2025 | 08:03:14 | 79.86, 21.41 | 104.81 | 01/02/2025 | 08:04:06 | 79.86, 21.48 | 104.78 | 1.47 | 52 |
| 11 | 01/02/2025 | 08:53:51 | -79.61,-168.94 | 75.65 | 01/02/2025 | 08:53:09 | -79.61,-168.97 | 75.63 | 0.61 | 42 |
| 12 | 01/04/2025 | 12:29:39 | 79.75, -44.18 | 104.42 | 01/04/2025 | 12:30:07 | 79.75, -44.22 | 104.41 | 0.85 | 28 |

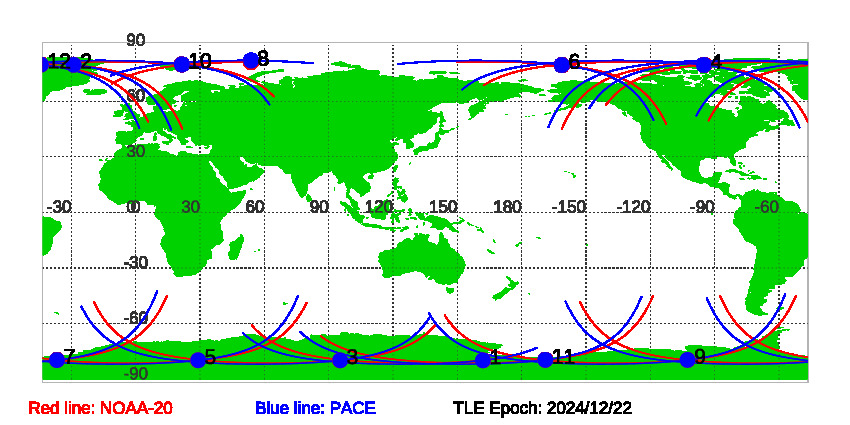

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 12/22/2024
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 12/22/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
