Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 10/31/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 10/31/2024 | 13:39:47 | -79.89, 117.11 | 84.12 | 10/31/2024 | 13:40:47 | -79.90, 117.01 | 84.13 | 2.02 | 60 |
| 2 | 10/31/2024 | 14:30:27 | 79.72, -73.92 | 95.59 | 10/31/2024 | 14:29:51 | 79.72, -73.91 | 95.60 | 0.32 | 36 |
| 3 | 11/02/2024 | 18:06:09 | -79.79, 51.47 | 83.61 | 11/02/2024 | 18:06:04 | -79.79, 51.52 | 83.62 | 1.08 | 5 |
| 4 | 11/04/2024 | 21:41:50 | 79.80, 177.51 | 97.06 | 11/04/2024 | 21:42:14 | 79.80, 177.36 | 97.07 | 2.98 | 24 |
| 5 | 11/04/2024 | 22:32:29 | -79.63, -13.72 | 83.21 | 11/04/2024 | 22:31:18 | -79.63, -13.67 | 83.19 | 1.08 | 71 |
| 6 | 11/07/2024 | 01:17:32 | -79.89, -57.26 | 82.15 | 11/07/2024 | 01:18:24 | -79.89, -57.33 | 82.16 | 1.42 | 52 |
| 7 | 11/07/2024 | 02:08:11 | 79.68, 111.94 | 97.52 | 11/07/2024 | 02:07:27 | 79.68, 111.96 | 97.53 | 0.44 | 44 |
| 8 | 11/09/2024 | 05:43:51 | -79.72,-122.32 | 81.80 | 11/09/2024 | 05:43:34 | -79.72,-122.38 | 81.79 | 1.10 | 17 |
| 9 | 11/11/2024 | 09:19:33 | 79.79, 3.10 | 98.92 | 11/11/2024 | 09:19:40 | 79.80, 3.07 | 98.93 | 0.85 | 7 |
| 10 | 11/13/2024 | 12:55:12 | -79.82, 128.97 | 80.46 | 11/13/2024 | 12:55:43 | -79.82, 128.88 | 80.46 | 1.91 | 31 |

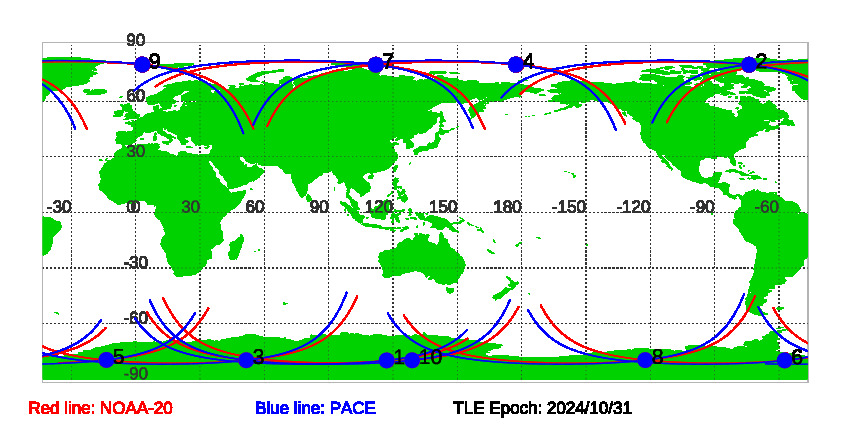

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 10/31/2024
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 10/31/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
