Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/29/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 09/01/2024 | 02:15:06 | -79.97, -72.24 | 105.97 | 09/01/2024 | 02:16:02 | -79.98, -72.34 | 105.99 | 2.08 | 56 |
| 2 | 09/01/2024 | 03:05:46 | 79.83, 96.46 | 73.78 | 09/01/2024 | 03:05:07 | 79.82, 96.59 | 73.77 | 2.68 | 39 |
| 3 | 09/03/2024 | 06:41:25 | -79.86,-137.78 | 105.40 | 09/03/2024 | 06:41:34 | -79.87,-137.89 | 105.39 | 2.29 | 9 |
| 4 | 09/05/2024 | 10:17:06 | 79.97, -12.78 | 75.58 | 09/05/2024 | 10:18:02 | 79.97, -12.81 | 75.56 | 0.64 | 56 |
| 5 | 09/05/2024 | 11:07:44 | -79.76, 156.60 | 104.81 | 09/05/2024 | 11:07:05 | -79.76, 156.52 | 104.78 | 1.64 | 39 |
| 6 | 09/07/2024 | 14:43:26 | 79.91, -78.73 | 76.25 | 09/07/2024 | 14:43:33 | 79.91, -78.70 | 76.24 | 0.72 | 7 |
| 7 | 09/09/2024 | 18:19:06 | -79.98, 46.59 | 102.82 | 09/09/2024 | 18:19:58 | -79.99, 46.57 | 102.84 | 0.73 | 52 |
| 8 | 09/09/2024 | 19:09:45 | 79.82,-144.47 | 76.89 | 09/09/2024 | 19:09:02 | 79.81,-144.33 | 76.88 | 2.80 | 43 |

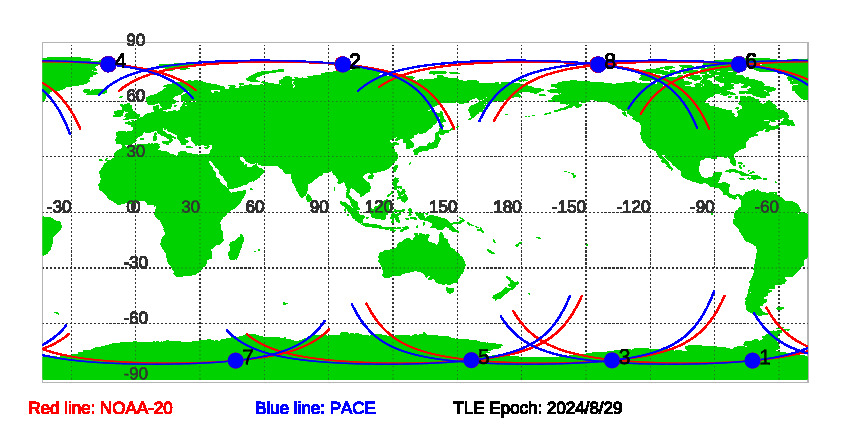

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 8/29/2024
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 08/29/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
