Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/24/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 08/25/2024 | 14:37:24 | -79.88, 103.08 | 108.38 | 08/25/2024 | 14:37:26 | -79.88, 103.07 | 108.38 | 0.38 | 2 |
| 2 | 08/27/2024 | 18:13:07 | 80.02,-132.25 | 72.62 | 08/27/2024 | 18:13:59 | 80.01,-132.11 | 72.57 | 2.79 | 52 |
| 3 | 08/27/2024 | 19:03:45 | -79.81, 37.13 | 107.76 | 08/27/2024 | 19:03:02 | -79.80, 37.21 | 107.76 | 1.59 | 43 |
| 4 | 08/29/2024 | 22:39:25 | 79.87, 162.63 | 73.10 | 08/29/2024 | 22:39:32 | 79.87, 162.56 | 73.10 | 1.31 | 7 |
| 5 | 09/01/2024 | 02:15:06 | -79.96, -72.11 | 106.00 | 09/01/2024 | 02:16:01 | -79.96, -72.24 | 106.01 | 2.65 | 55 |
| 6 | 09/01/2024 | 03:05:46 | 79.82, 96.56 | 73.76 | 09/01/2024 | 03:05:06 | 79.81, 96.64 | 73.76 | 1.76 | 40 |
| 7 | 09/03/2024 | 06:41:27 | -79.91,-138.21 | 105.32 | 09/03/2024 | 06:41:34 | -79.90,-138.15 | 105.33 | 1.28 | 7 |
| 8 | 09/05/2024 | 10:17:07 | 79.99, -12.94 | 75.61 | 09/05/2024 | 10:18:01 | 79.99, -12.92 | 75.58 | 0.29 | 54 |

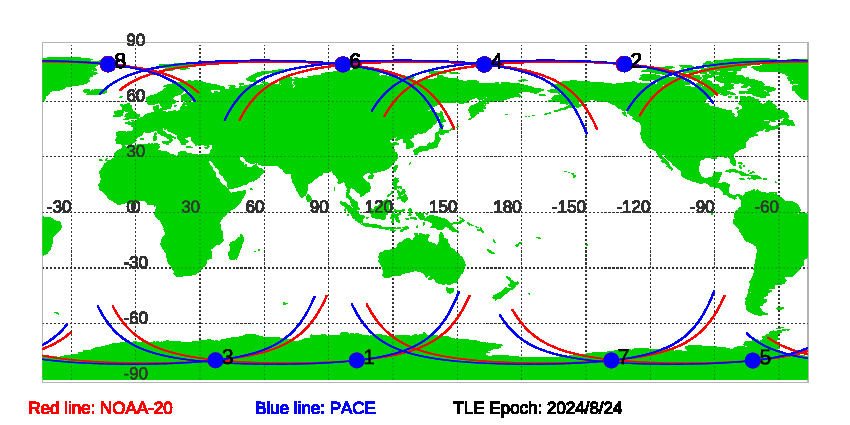

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 8/24/2024
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 08/24/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
