Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/5/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 08/06/2024 | 01:13:33 | 81.34, 91.34 | 70.86 | 08/06/2024 | 01:14:46 | 81.91, 91.51 | 70.95 | 64.29 | 73 |
| 2 | 08/06/2024 | 02:02:44 | -79.85, -67.92 | 114.43 | 08/06/2024 | 02:02:25 | -79.85, -67.96 | 114.42 | 0.75 | 19 |
| 3 | 08/08/2024 | 05:38:29 | 79.98, 56.90 | 66.41 | 08/08/2024 | 05:39:09 | 79.97, 56.89 | 66.39 | 0.36 | 40 |
| 4 | 08/08/2024 | 06:29:08 | -79.81,-134.12 | 113.91 | 08/08/2024 | 06:28:13 | -79.80,-134.08 | 113.89 | 0.90 | 55 |
| 5 | 08/10/2024 | 10:04:53 | 79.94, -9.36 | 66.96 | 08/10/2024 | 10:04:56 | 79.93, -9.22 | 66.94 | 2.89 | 3 |
| 6 | 08/12/2024 | 13:40:37 | -80.06, 115.55 | 112.19 | 08/12/2024 | 13:41:37 | -80.05, 115.66 | 112.24 | 2.11 | 60 |
| 7 | 08/12/2024 | 14:31:14 | 79.85, -75.08 | 67.43 | 08/12/2024 | 14:30:40 | 79.85, -75.06 | 67.45 | 0.46 | 34 |
| 8 | 08/14/2024 | 18:06:58 | -79.97, 49.84 | 111.70 | 08/14/2024 | 18:07:20 | -79.97, 49.87 | 111.72 | 0.71 | 22 |
| 9 | 08/14/2024 | 18:57:35 | 79.73,-140.57 | 67.87 | 08/14/2024 | 18:56:23 | 79.73,-140.62 | 67.91 | 1.01 | 72 |
| 10 | 08/16/2024 | 22:33:20 | -79.88, -15.94 | 111.19 | 08/16/2024 | 22:33:03 | -79.89, -15.92 | 111.18 | 0.46 | 17 |
| 11 | 08/19/2024 | 02:09:03 | 79.99, 109.12 | 69.69 | 08/19/2024 | 02:09:41 | 79.98, 109.18 | 69.66 | 1.15 | 38 |

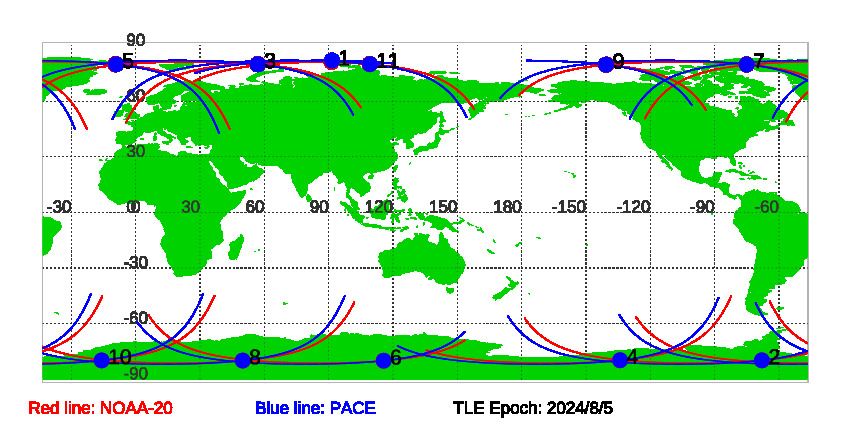

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 8/5/2024
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 08/05/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
