Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/27/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 06/27/2024 | 22:20:38 | 80.06, 165.62 | 59.26 | 06/27/2024 | 22:21:23 | 80.05, 165.73 | 59.22 | 2.32 | 45 |
| 2 | 06/27/2024 | 23:11:16 | -79.88, -25.23 | 121.09 | 06/27/2024 | 23:10:27 | -79.87, -25.11 | 121.09 | 2.52 | 49 |
| 3 | 06/30/2024 | 02:47:04 | 80.01, 99.50 | 59.30 | 06/30/2024 | 02:47:24 | 80.01, 99.58 | 59.28 | 1.48 | 20 |
| 4 | 06/30/2024 | 03:37:36 | -79.64, -89.66 | 121.39 | 06/30/2024 | 03:36:22 | -79.60, -89.65 | 121.39 | 4.58 | 74 |
| 5 | 07/02/2024 | 07:13:28 | 79.91, 33.94 | 59.27 | 07/02/2024 | 07:13:23 | 79.91, 33.85 | 59.28 | 1.67 | 5 |
| 6 | 07/04/2024 | 10:49:15 | -80.06, 158.47 | 120.25 | 07/04/2024 | 10:50:19 | -80.06, 158.40 | 120.27 | 1.47 | 64 |
| 7 | 07/04/2024 | 11:39:54 | 79.86, -32.26 | 59.38 | 07/04/2024 | 11:39:23 | 79.86, -32.30 | 59.40 | 0.69 | 31 |
| 8 | 07/06/2024 | 15:15:40 | -79.99, 92.56 | 120.16 | 07/06/2024 | 15:16:18 | -80.00, 92.43 | 120.15 | 2.78 | 38 |
| 9 | 07/06/2024 | 16:06:19 | 79.79, -98.21 | 59.48 | 07/06/2024 | 16:05:22 | 79.79, -98.30 | 59.52 | 1.85 | 57 |
| 10 | 07/08/2024 | 19:42:07 | -79.98, 26.03 | 119.92 | 07/08/2024 | 19:42:18 | -79.98, 26.03 | 119.92 | 0.37 | 11 |

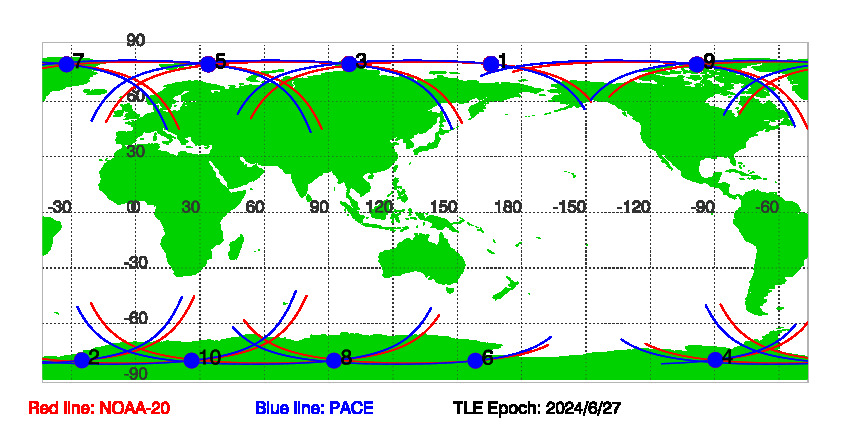

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 6/27/2024
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 06/27/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
