Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/29/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 04/30/2024 | 01:01:28 | -80.08, -54.57 | 112.58 | 04/30/2024 | 01:02:01 | -80.07, -54.55 | 112.60 | 0.48 | 33 |
| 2 | 04/30/2024 | 01:52:05 | 79.84, 115.06 | 66.98 | 04/30/2024 | 01:51:05 | 79.85, 114.91 | 67.03 | 2.99 | 60 |
| 3 | 05/02/2024 | 05:27:51 | -80.08,-121.23 | 113.23 | 05/02/2024 | 05:28:22 | -80.07,-121.14 | 113.26 | 1.80 | 31 |
| 4 | 05/02/2024 | 06:18:28 | 79.85, 48.39 | 66.34 | 05/02/2024 | 06:17:26 | 79.86, 48.29 | 66.38 | 2.01 | 62 |
| 5 | 05/04/2024 | 09:54:13 | -80.06, 172.37 | 113.90 | 05/04/2024 | 09:54:42 | -80.07, 172.32 | 113.90 | 1.19 | 29 |
| 6 | 05/04/2024 | 10:44:52 | 79.89, -18.61 | 65.77 | 05/04/2024 | 10:43:47 | 79.89, -18.55 | 65.80 | 1.17 | 65 |
| 7 | 05/06/2024 | 14:20:34 | -80.02, 106.22 | 114.60 | 05/06/2024 | 14:21:00 | -80.02, 106.12 | 114.60 | 1.86 | 26 |
| 8 | 05/06/2024 | 15:11:14 | 79.88, -85.08 | 65.13 | 05/06/2024 | 15:10:06 | 79.88, -85.07 | 65.17 | 0.23 | 68 |
| 9 | 05/08/2024 | 18:46:57 | -80.04, 39.42 | 115.15 | 05/08/2024 | 18:47:19 | -80.04, 39.40 | 115.16 | 0.32 | 22 |
| 10 | 05/08/2024 | 19:37:36 | 79.87,-151.59 | 64.53 | 05/08/2024 | 19:36:24 | 79.87,-151.53 | 64.55 | 1.23 | 72 |
| 11 | 05/10/2024 | 23:13:18 | -80.00, -26.83 | 115.79 | 05/10/2024 | 23:13:36 | -80.01, -26.97 | 115.77 | 3.00 | 18 |

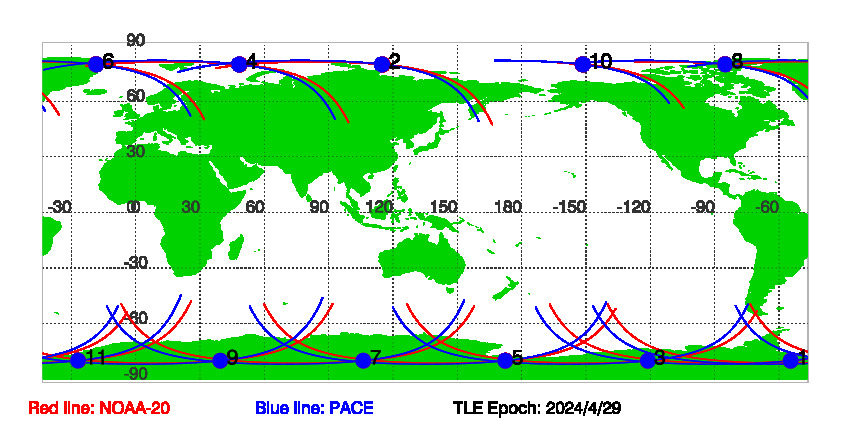

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 4/29/2024
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 04/29/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
