Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/20/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 04/21/2024 | 07:15:46 | -80.05,-147.91 | 109.79 | 04/21/2024 | 07:16:28 | -80.06,-148.02 | 109.79 | 2.19 | 42 |
| 2 | 04/21/2024 | 08:06:26 | 79.90, 20.98 | 69.91 | 04/21/2024 | 08:05:34 | 79.90, 20.92 | 69.95 | 1.26 | 52 |
| 3 | 04/23/2024 | 11:42:22 | -80.02, 145.75 | 110.58 | 04/23/2024 | 11:42:52 | -80.03, 145.61 | 110.57 | 2.86 | 30 |
| 4 | 04/23/2024 | 12:33:01 | 79.84, -45.11 | 69.07 | 04/23/2024 | 12:31:57 | 79.84, -45.21 | 69.11 | 2.14 | 64 |
| 5 | 04/25/2024 | 16:09:00 | -80.06, 78.74 | 111.23 | 04/25/2024 | 16:09:16 | -80.05, 78.82 | 111.25 | 1.50 | 16 |
| 6 | 04/27/2024 | 20:35:34 | -79.98, 12.87 | 112.08 | 04/27/2024 | 20:35:36 | -79.99, 12.77 | 112.07 | 2.00 | 2 |
| 7 | 04/30/2024 | 01:02:10 | -79.97, -53.66 | 112.78 | 04/30/2024 | 01:01:56 | -79.97, -53.69 | 112.77 | 0.47 | 14 |
| 8 | 05/02/2024 | 04:38:07 | 80.14, 70.56 | 66.91 | 05/02/2024 | 04:39:10 | 80.13, 70.71 | 66.85 | 3.15 | 63 |

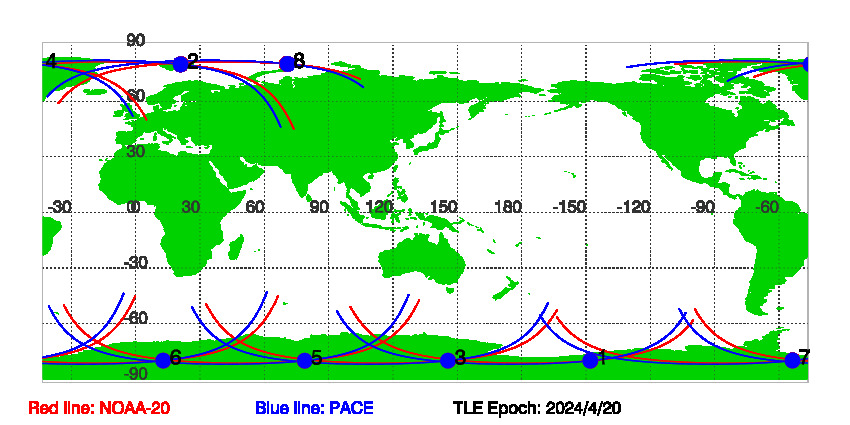

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 4/20/2024
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 04/20/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
