Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and NOAA-19 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 2/1/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Distance(km) | Time Diff (sec) |
| 1 | 02/12/2024 | 10:53:55 | -73.48,-173.18 | 92.41 | 02/12/2024 | 10:52:45 | -73.50,-174.94 | 92.25 | 55.73 | 70 |
| 2 | 02/12/2024 | 11:44:49 | 73.88, -6.81 | 88.03 | 02/12/2024 | 11:43:35 | 73.88, -6.75 | 88.05 | 1.91 | 74 |
| 3 | 02/12/2024 | 12:35:33 | -73.88, 160.50 | 91.98 | 02/12/2024 | 12:34:36 | -73.86, 160.45 | 91.99 | 2.95 | 57 |
| 4 | 02/12/2024 | 13:26:19 | 73.89, -32.19 | 88.01 | 02/12/2024 | 13:25:33 | 73.90, -32.19 | 88.04 | 1.16 | 46 |
| 5 | 02/12/2024 | 14:17:03 | -73.89, 135.12 | 92.00 | 02/12/2024 | 14:16:34 | -73.88, 135.01 | 91.99 | 3.43 | 29 |
| 6 | 02/12/2024 | 15:07:50 | 73.94, -57.70 | 88.05 | 02/12/2024 | 15:07:31 | 73.92, -57.63 | 88.03 | 3.25 | 19 |
| 7 | 02/12/2024 | 15:58:34 | -73.94, 109.62 | 91.96 | 02/12/2024 | 15:58:31 | -73.95, 109.69 | 91.96 | 2.46 | 3 |
| 8 | 02/12/2024 | 16:49:20 | 73.94, -83.08 | 88.03 | 02/12/2024 | 16:49:29 | 73.93, -83.08 | 88.02 | 0.84 | 9 |
| 9 | 02/12/2024 | 17:40:04 | -73.94, 84.23 | 91.98 | 02/12/2024 | 17:40:29 | -73.96, 84.25 | 91.97 | 2.44 | 25 |
| 10 | 02/12/2024 | 18:30:50 | 73.95,-108.47 | 88.01 | 02/12/2024 | 18:31:27 | 73.95,-108.52 | 88.01 | 1.79 | 37 |
| 11 | 02/12/2024 | 19:21:35 | -74.00, 58.73 | 91.95 | 02/12/2024 | 19:22:27 | -73.98, 58.81 | 91.98 | 2.80 | 52 |
| 12 | 02/12/2024 | 20:12:21 | 74.00,-133.97 | 88.05 | 02/12/2024 | 20:13:25 | 73.97,-133.96 | 88.01 | 2.82 | 64 |
| 13 | 02/12/2024 | 21:03:10 | -74.24, 32.73 | 91.69 | 02/12/2024 | 21:04:21 | -74.19, 33.87 | 91.83 | 34.91 | 71 |

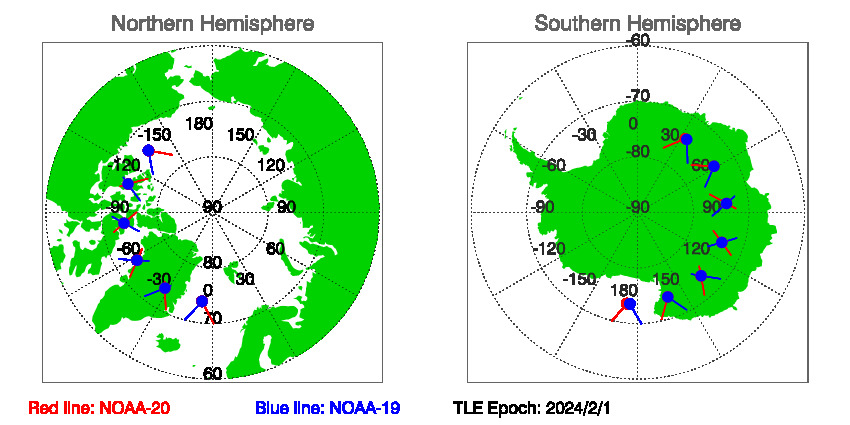

Figure of NOAA-20 and NOAA-19 satellite orbits during SNOs since TLE Epoch: 2/1/2024
Download SNOs between NOAA-20 and NOAA-19 since TLE EPOCH: 02/01/2024 in txt file.
