Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and NOAA-19 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/28/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Distance(km) | Time Diff (sec) |
| 1 | 09/06/2021 | 23:05:04 | 77.96, 169.16 | 72.91 | 09/06/2021 | 23:03:52 | 77.95, 169.28 | 72.92 | 3.31 | 72 |
| 2 | 09/06/2021 | 23:55:48 | -77.94, -23.43 | 107.10 | 09/06/2021 | 23:54:52 | -77.93, -23.55 | 107.08 | 3.23 | 56 |
| 3 | 09/07/2021 | 00:46:34 | 77.97, 143.76 | 72.95 | 09/07/2021 | 00:45:52 | 77.95, 143.84 | 72.95 | 2.17 | 42 |
| 4 | 09/07/2021 | 01:37:18 | -77.95, -48.83 | 107.07 | 09/07/2021 | 01:36:51 | -77.98, -48.78 | 107.04 | 3.50 | 27 |
| 5 | 09/07/2021 | 02:28:04 | 77.97, 118.36 | 72.98 | 09/07/2021 | 02:27:52 | 77.96, 118.40 | 72.98 | 1.03 | 12 |
| 6 | 09/07/2021 | 03:18:48 | -77.95, -74.23 | 107.04 | 09/07/2021 | 03:18:51 | -77.99, -74.23 | 107.01 | 3.84 | 3 |
| 7 | 09/07/2021 | 04:09:34 | 77.97, 92.96 | 73.01 | 09/07/2021 | 04:09:52 | 77.97, 92.96 | 73.00 | 0.12 | 18 |
| 8 | 09/07/2021 | 05:00:19 | -78.00, -99.83 | 106.95 | 09/07/2021 | 05:00:51 | -77.99, -99.67 | 106.98 | 3.71 | 32 |
| 9 | 09/07/2021 | 05:51:04 | 77.98, 67.56 | 73.04 | 09/07/2021 | 05:51:52 | 77.98, 67.52 | 73.03 | 1.23 | 48 |
| 10 | 09/07/2021 | 06:41:49 | -78.00,-125.23 | 106.92 | 09/07/2021 | 06:42:51 | -78.00,-125.12 | 106.95 | 2.66 | 62 |
| 11 | 09/07/2021 | 07:32:38 | 78.15, 41.32 | 73.30 | 09/07/2021 | 07:33:49 | 78.11, 42.74 | 73.11 | 32.78 | 71 |

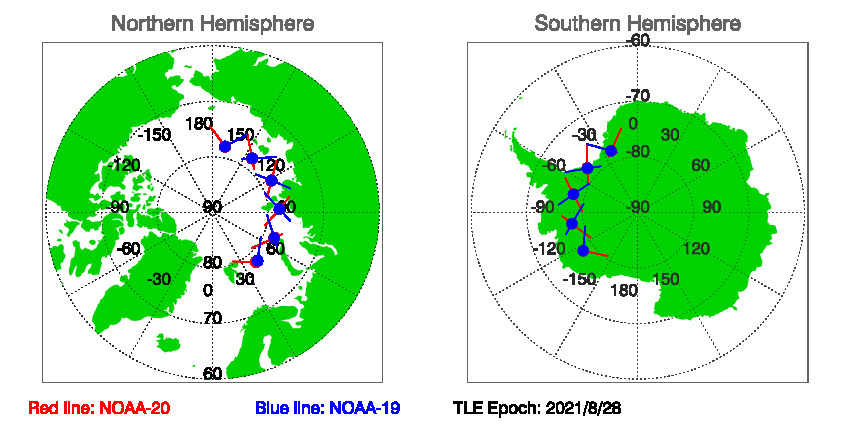

Figure of NOAA-20 and NOAA-19 satellite orbits during SNOs since TLE Epoch: 8/28/2021
Download SNOs between NOAA-20 and NOAA-19 since TLE EPOCH: 08/28/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and NOAA-19
