Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and METOP-B Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/4/2023
Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (METOP-B) | Time (METOP-B) | Lat,Lon (METOP-B) | SZA (METOP-B ) | Distance(km) | Time Diff (sec) |
1 | 04/04/2023 | 04:46:00 | 72.70, 100.42 | 67.24 | 04/04/2023 | 04:45:27 | 72.73, 100.43 | 67.28 | 2.94 | 33 |
2 | 04/04/2023 | 05:36:44 | -72.70, -92.26 | 112.78 | 04/04/2023 | 05:36:09 | -72.72, -92.27 | 112.75 | 1.83 | 35 |
3 | 04/04/2023 | 06:27:30 | 72.71, 75.04 | 67.22 | 04/04/2023 | 06:26:49 | 72.71, 75.05 | 67.23 | 0.70 | 41 |
4 | 04/04/2023 | 07:18:14 | -72.70,-117.64 | 112.80 | 04/04/2023 | 07:17:31 | -72.70,-117.64 | 112.80 | 0.56 | 43 |
5 | 04/04/2023 | 08:08:59 | 72.71, 49.67 | 67.19 | 04/04/2023 | 08:08:10 | 72.69, 49.67 | 67.19 | 1.69 | 49 |
6 | 04/04/2023 | 08:59:43 | -72.71,-143.01 | 112.83 | 04/04/2023 | 08:58:52 | -72.68,-143.02 | 112.84 | 2.75 | 51 |
7 | 04/04/2023 | 09:50:28 | 72.66, 24.39 | 67.11 | 04/04/2023 | 09:49:32 | 72.67, 24.30 | 67.14 | 3.63 | 56 |
8 | 04/04/2023 | 10:41:13 | -72.71,-168.39 | 112.85 | 04/04/2023 | 10:40:13 | -72.71,-168.30 | 112.84 | 3.13 | 60 |
9 | 04/04/2023 | 11:31:58 | 72.66, -0.99 | 67.09 | 04/04/2023 | 11:30:54 | 72.65, -1.08 | 67.10 | 3.31 | 64 |
10 | 04/04/2023 | 12:22:43 | -72.71, 166.23 | 112.88 | 04/04/2023 | 12:21:35 | -72.69, 166.32 | 112.88 | 3.45 | 68 |
11 | 04/04/2023 | 13:13:28 | 72.66, -26.36 | 67.06 | 04/04/2023 | 13:12:15 | 72.69, -26.36 | 67.10 | 2.75 | 73 |
12 | 04/04/2023 | 14:04:12 | -72.66, 140.96 | 112.96 | 04/04/2023 | 14:02:57 | -72.67, 140.94 | 112.93 | 1.76 | 75 |
13 | 04/04/2023 | 14:54:54 | 72.46, -51.33 | 66.82 | 04/04/2023 | 14:53:41 | 72.46, -52.15 | 66.88 | 27.54 | 73 |
14 | 04/04/2023 | 15:45:36 | -72.36, 116.19 | 113.31 | 04/04/2023 | 15:44:25 | -72.35, 114.95 | 113.24 | 41.82 | 71 |
15 | 04/04/2023 | 16:36:18 | 72.16, -76.10 | 66.46 | 04/04/2023 | 16:35:09 | 72.14, -78.13 | 66.56 | 69.12 | 69 |
16 | 04/04/2023 | 17:27:00 | -72.05, 91.41 | 113.67 | 04/04/2023 | 17:25:52 | -72.08, 89.08 | 113.51 | 79.80 | 68 |

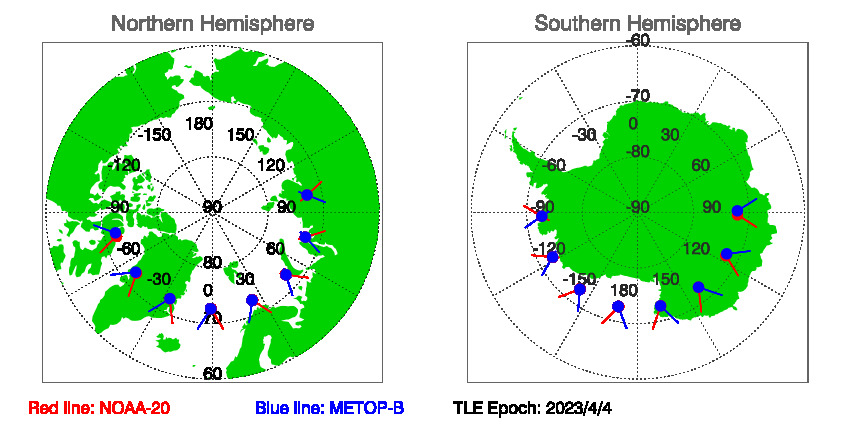

Figure of NOAA-20 and METOP-B satellite orbits during SNOs since TLE Epoch: 4/4/2023
Download SNOs between NOAA-20 and METOP-B since TLE EPOCH: 04/04/2023 in txt file.
Historial Predications of SNOs between NOAA-20 and METOP-B
