Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-9 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/8/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-9) | Time (LANDSAT-9) | Lat,Lon (LANDSAT-9) | SZA (LANDSAT-9 ) | Distance(km) | Time Diff (sec) |
| 1 | 09/09/2024 | 14:52:43 | -71.00, 131.54 | 114.01 | 09/09/2024 | 14:53:49 | -70.95, 134.17 | 114.12 | 95.71 | 66 |
| 2 | 09/09/2024 | 15:43:10 | 70.02, -59.59 | 64.99 | 09/09/2024 | 15:43:31 | 70.03, -59.55 | 64.99 | 1.44 | 21 |
| 3 | 09/09/2024 | 16:33:52 | -69.91, 107.89 | 115.11 | 09/09/2024 | 16:33:01 | -69.92, 107.93 | 115.11 | 1.64 | 51 |
| 4 | 09/12/2024 | 07:09:20 | -70.39,-111.68 | 113.63 | 09/12/2024 | 07:10:31 | -70.32,-110.91 | 113.73 | 30.18 | 71 |
| 5 | 09/12/2024 | 07:59:58 | 69.99, 56.25 | 65.97 | 09/12/2024 | 08:00:02 | 69.99, 56.27 | 65.97 | 0.76 | 4 |
| 6 | 09/12/2024 | 08:50:40 | -69.88,-136.27 | 114.13 | 09/12/2024 | 08:49:32 | -69.88,-136.24 | 114.13 | 0.96 | 68 |
| 7 | 09/14/2024 | 23:26:03 | -70.07, 4.61 | 112.94 | 09/14/2024 | 23:27:05 | -70.07, 4.63 | 112.95 | 0.60 | 62 |
| 8 | 09/15/2024 | 00:16:46 | 69.93, 172.13 | 66.93 | 09/15/2024 | 00:16:32 | 69.96, 172.11 | 66.96 | 3.14 | 14 |
| 9 | 09/15/2024 | 01:07:20 | -69.40, -19.77 | 113.61 | 09/15/2024 | 01:06:09 | -69.47, -20.93 | 113.51 | 46.00 | 71 |
| 10 | 09/17/2024 | 15:42:51 | -70.03, 120.46 | 111.95 | 09/17/2024 | 15:43:33 | -70.06, 120.49 | 111.93 | 2.96 | 42 |
| 11 | 09/17/2024 | 16:33:34 | 69.90, -72.03 | 67.93 | 09/17/2024 | 16:33:01 | 69.88, -72.10 | 67.92 | 3.26 | 33 |
| 12 | 09/20/2024 | 07:09:11 | 70.88, 67.60 | 69.94 | 09/20/2024 | 07:10:18 | 70.75, 69.79 | 69.79 | 81.06 | 67 |
| 13 | 09/20/2024 | 07:59:38 | -69.97,-123.65 | 110.98 | 09/20/2024 | 08:00:00 | -70.00,-123.69 | 110.96 | 3.27 | 22 |
| 14 | 09/20/2024 | 08:50:22 | 69.89, 43.78 | 68.96 | 09/20/2024 | 08:49:27 | 69.88, 43.78 | 68.94 | 1.72 | 55 |

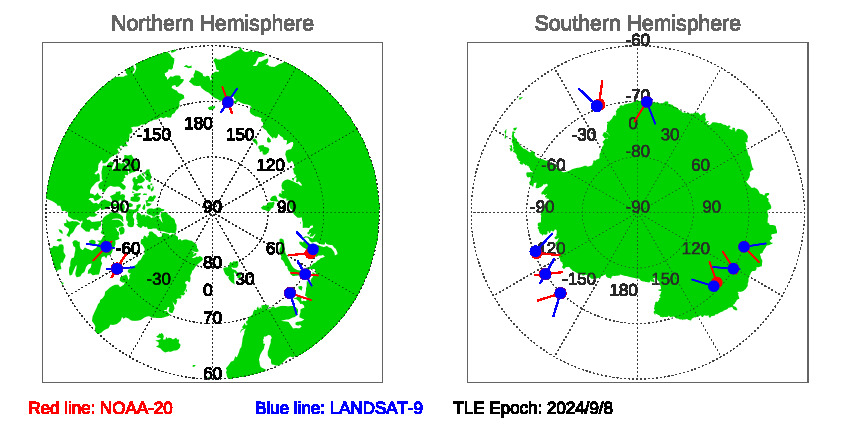

Figure of NOAA-20 and LANDSAT-9 satellite orbits during SNOs since TLE Epoch: 9/8/2024
Download SNOs between NOAA-20 and LANDSAT-9 since TLE EPOCH: 09/08/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and LANDSAT-9
