Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 11/24/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 11/24/2024 | 16:08:00 | -70.01, 114.07 | 89.36 | 11/24/2024 | 16:08:40 | -69.99, 114.15 | 89.38 | 3.54 | 40 |
| 2 | 11/24/2024 | 16:58:44 | 69.88, -78.42 | 90.51 | 11/24/2024 | 16:58:07 | 69.89, -78.35 | 90.52 | 2.83 | 37 |
| 3 | 11/27/2024 | 07:34:23 | 70.81, 61.28 | 91.95 | 11/27/2024 | 07:35:30 | 70.68, 63.39 | 91.80 | 78.72 | 67 |
| 4 | 11/27/2024 | 08:24:50 | -69.94,-130.04 | 88.93 | 11/27/2024 | 08:25:11 | -69.97,-130.02 | 88.91 | 2.78 | 21 |
| 5 | 11/27/2024 | 09:15:34 | 69.82, 37.46 | 90.95 | 11/27/2024 | 09:14:39 | 69.80, 37.40 | 90.94 | 2.59 | 55 |
| 6 | 11/29/2024 | 23:50:59 | 70.08, 178.23 | 91.66 | 11/29/2024 | 23:52:10 | 70.05, 178.34 | 91.63 | 5.38 | 71 |
| 7 | 11/30/2024 | 00:41:39 | -69.89, -14.17 | 88.53 | 11/30/2024 | 00:41:41 | -69.89, -14.25 | 88.53 | 2.78 | 2 |
| 8 | 11/30/2024 | 01:32:22 | 69.72, 153.39 | 91.31 | 11/30/2024 | 01:31:09 | 69.72, 153.17 | 91.31 | 8.69 | 73 |
| 9 | 12/02/2024 | 16:07:48 | 69.99, -65.85 | 91.98 | 12/02/2024 | 16:08:40 | 69.97, -65.88 | 91.96 | 2.12 | 52 |
| 10 | 12/02/2024 | 16:58:30 | -69.90, 101.60 | 88.11 | 12/02/2024 | 16:58:10 | -69.87, 101.61 | 88.14 | 3.48 | 20 |
| 11 | 12/02/2024 | 17:48:58 | 68.94, -89.71 | 90.92 | 12/02/2024 | 17:47:51 | 68.98, -91.93 | 90.98 | 88.83 | 67 |
| 12 | 12/05/2024 | 08:24:38 | 69.97, 49.97 | 92.31 | 12/05/2024 | 08:25:08 | 69.96, 49.98 | 92.30 | 1.39 | 30 |
| 13 | 12/05/2024 | 09:15:20 | -69.87,-142.57 | 87.78 | 12/05/2024 | 09:14:38 | -69.86,-142.53 | 87.81 | 2.83 | 42 |
| 14 | 12/07/2024 | 23:50:52 | -70.48, -2.34 | 86.87 | 12/07/2024 | 23:52:02 | -70.39, -1.15 | 86.98 | 45.55 | 70 |
| 15 | 12/08/2024 | 00:41:28 | 69.96, 165.77 | 92.61 | 12/08/2024 | 00:41:35 | 69.94, 165.85 | 92.59 | 3.63 | 7 |
| 16 | 12/08/2024 | 01:32:09 | -69.81, -26.69 | 87.55 | 12/08/2024 | 01:31:06 | -69.79, -26.73 | 87.57 | 2.81 | 63 |

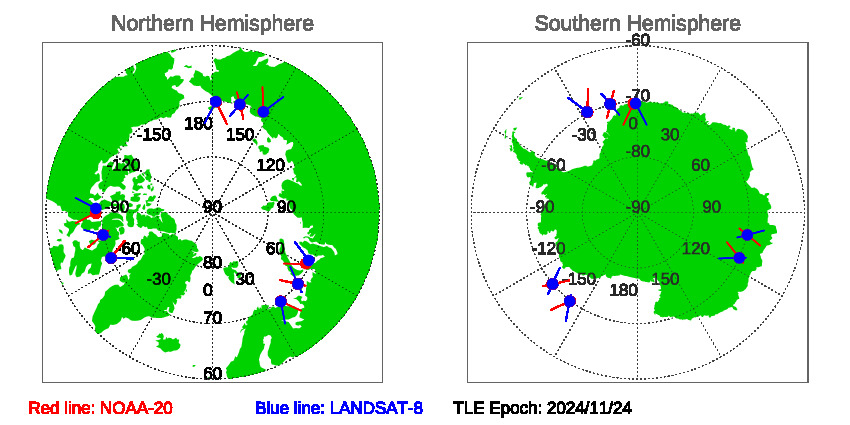

Figure of NOAA-20 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 11/24/2024
Download SNOs between NOAA-20 and LANDSAT-8 since TLE EPOCH: 11/24/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and LANDSAT-8
