Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 11/21/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 11/21/2024 | 23:51:09 | -70.02, -1.72 | 89.91 | 11/21/2024 | 23:52:09 | -69.99, -1.72 | 89.93 | 2.65 | 60 |
| 2 | 11/22/2024 | 00:41:53 | 69.88, 165.79 | 89.97 | 11/22/2024 | 00:41:36 | 69.89, 165.78 | 89.97 | 0.88 | 17 |
| 3 | 11/22/2024 | 01:32:24 | -69.24, -25.95 | 90.68 | 11/22/2024 | 01:31:14 | -69.34, -27.33 | 90.57 | 55.71 | 70 |
| 4 | 11/24/2024 | 16:07:59 | -69.99, 114.11 | 89.39 | 11/24/2024 | 16:08:40 | -69.98, 114.12 | 89.40 | 1.47 | 41 |
| 5 | 11/24/2024 | 16:58:43 | 69.86, -78.39 | 90.49 | 11/24/2024 | 16:58:07 | 69.87, -78.39 | 90.50 | 0.94 | 36 |
| 6 | 11/27/2024 | 07:34:22 | 70.79, 61.32 | 91.92 | 11/27/2024 | 07:35:29 | 70.73, 63.47 | 91.86 | 79.06 | 67 |
| 7 | 11/27/2024 | 08:24:50 | -69.97,-130.08 | 88.90 | 11/27/2024 | 08:25:11 | -69.97,-130.01 | 88.91 | 2.58 | 21 |
| 8 | 11/27/2024 | 09:15:34 | 69.85, 37.41 | 90.98 | 11/27/2024 | 09:14:38 | 69.86, 37.48 | 90.99 | 2.80 | 56 |
| 9 | 11/29/2024 | 23:51:00 | 70.10, 178.19 | 91.68 | 11/29/2024 | 23:52:11 | 70.08, 178.38 | 91.66 | 7.90 | 71 |
| 10 | 11/30/2024 | 00:41:40 | -69.91, -14.21 | 88.51 | 11/30/2024 | 00:41:42 | -69.93, -14.20 | 88.50 | 1.41 | 2 |
| 11 | 11/30/2024 | 01:32:23 | 69.74, 153.35 | 91.33 | 11/30/2024 | 01:31:10 | 69.76, 153.21 | 91.34 | 5.73 | 73 |
| 12 | 12/02/2024 | 16:07:49 | 70.01, -65.89 | 92.00 | 12/02/2024 | 16:08:42 | 69.99, -65.86 | 91.98 | 2.28 | 53 |
| 13 | 12/02/2024 | 16:58:30 | -69.87, 101.65 | 88.15 | 12/02/2024 | 16:58:12 | -69.89, 101.63 | 88.12 | 2.91 | 18 |
| 14 | 12/02/2024 | 17:49:00 | 69.01, -89.82 | 91.00 | 12/02/2024 | 17:47:52 | 69.06, -91.84 | 91.06 | 80.79 | 68 |

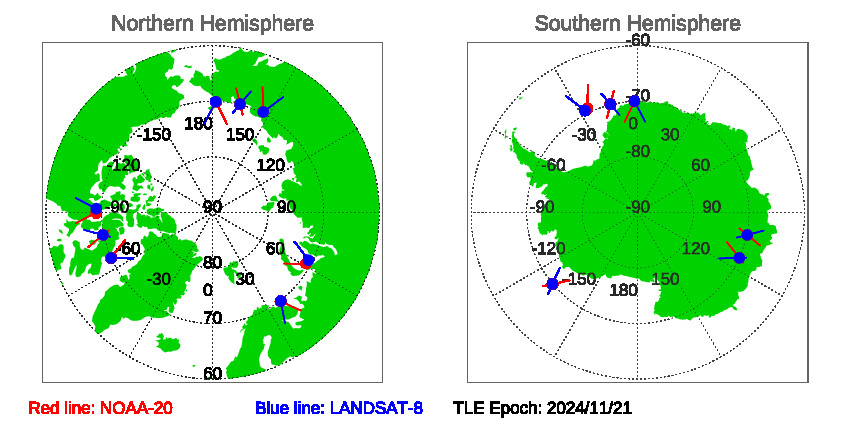

Figure of NOAA-20 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 11/21/2024
Download SNOs between NOAA-20 and LANDSAT-8 since TLE EPOCH: 11/21/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and LANDSAT-8
