Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 10/27/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 10/28/2024 | 23:51:29 | 69.98, 178.28 | 83.42 | 10/28/2024 | 23:51:58 | 69.98, 178.30 | 83.41 | 1.11 | 29 |
| 2 | 10/29/2024 | 00:42:10 | -69.87, -14.23 | 96.69 | 10/29/2024 | 00:41:28 | -69.87, -14.22 | 96.70 | 0.25 | 42 |
| 3 | 10/31/2024 | 15:17:42 | -70.23, 126.37 | 95.48 | 10/31/2024 | 15:18:54 | -70.16, 126.81 | 95.55 | 18.49 | 72 |
| 4 | 10/31/2024 | 16:08:23 | 69.93, -65.87 | 84.24 | 10/31/2024 | 16:08:23 | 69.94, -65.86 | 84.24 | 0.76 | 0 |
| 5 | 10/31/2024 | 16:59:04 | -69.81, 101.62 | 95.88 | 10/31/2024 | 16:57:53 | -69.83, 101.62 | 95.86 | 1.63 | 71 |
| 6 | 11/03/2024 | 07:34:32 | -69.99,-117.49 | 94.88 | 11/03/2024 | 07:35:20 | -69.99,-117.52 | 94.88 | 1.19 | 48 |
| 7 | 11/03/2024 | 08:25:17 | 69.90, 49.94 | 85.05 | 11/03/2024 | 08:24:47 | 69.87, 49.96 | 85.02 | 3.39 | 30 |
| 8 | 11/05/2024 | 23:00:55 | 70.63,-170.04 | 86.57 | 11/05/2024 | 23:02:04 | 70.51,-168.50 | 86.45 | 58.80 | 69 |
| 9 | 11/05/2024 | 23:51:26 | -69.98, -1.71 | 94.08 | 11/05/2024 | 23:51:42 | -69.96, -1.65 | 94.09 | 2.89 | 16 |
| 10 | 11/06/2024 | 00:42:09 | 69.84, 165.80 | 85.81 | 11/06/2024 | 00:41:08 | 69.84, 165.83 | 85.80 | 1.06 | 61 |
| 11 | 11/08/2024 | 15:17:36 | 70.01, -53.30 | 86.74 | 11/08/2024 | 15:18:32 | 70.01, -53.29 | 86.73 | 0.40 | 56 |
| 12 | 11/08/2024 | 16:08:17 | -69.89, 114.20 | 93.38 | 11/08/2024 | 16:08:02 | -69.90, 114.19 | 93.37 | 2.15 | 15 |
| 13 | 11/08/2024 | 16:58:49 | 69.12, -77.38 | 85.86 | 11/08/2024 | 16:57:40 | 69.17, -79.15 | 85.91 | 70.49 | 69 |

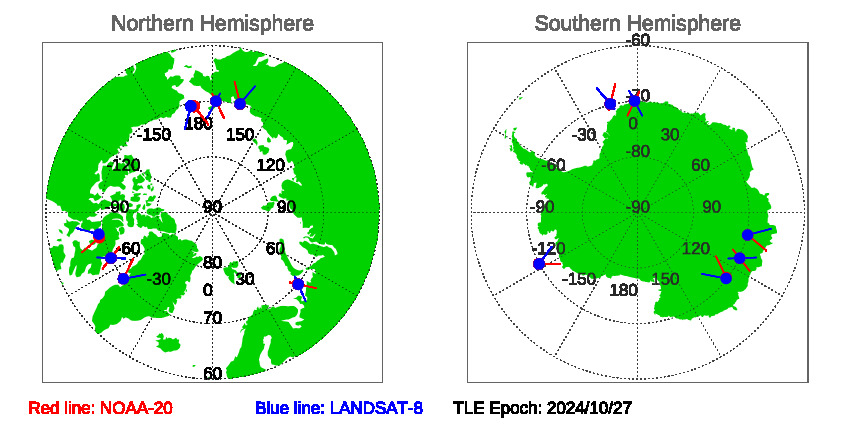

Figure of NOAA-20 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 10/27/2024
Download SNOs between NOAA-20 and LANDSAT-8 since TLE EPOCH: 10/27/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and LANDSAT-8
