Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/14/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 05/16/2024 | 13:38:34 | 70.24, -28.47 | 50.87 | 05/16/2024 | 13:39:09 | 70.23, -28.47 | 50.85 | 0.82 | 35 |
| 2 | 05/16/2024 | 14:29:16 | -70.14, 139.00 | 129.25 | 05/16/2024 | 14:28:39 | -70.11, 139.00 | 129.27 | 2.78 | 37 |
| 3 | 05/19/2024 | 05:04:48 | -70.77, -80.84 | 129.16 | 05/19/2024 | 05:05:58 | -70.70, -79.53 | 129.27 | 48.89 | 70 |
| 4 | 05/19/2024 | 05:55:23 | 70.20, 87.37 | 50.25 | 05/19/2024 | 05:55:32 | 70.21, 87.40 | 50.25 | 1.07 | 9 |
| 5 | 05/19/2024 | 06:46:05 | -70.10,-105.16 | 129.87 | 05/19/2024 | 06:45:02 | -70.09,-105.13 | 129.88 | 1.37 | 63 |
| 6 | 05/21/2024 | 21:21:28 | -70.28, 35.73 | 130.21 | 05/21/2024 | 21:22:27 | -70.29, 35.77 | 130.22 | 1.52 | 59 |
| 7 | 05/21/2024 | 22:12:12 | 70.19,-156.82 | 49.69 | 05/21/2024 | 22:11:54 | 70.17,-156.75 | 49.67 | 3.11 | 18 |
| 8 | 05/21/2024 | 23:02:43 | -69.51, 11.52 | 131.03 | 05/21/2024 | 23:01:33 | -69.57, 10.04 | 130.93 | 57.87 | 70 |
| 9 | 05/24/2024 | 13:38:16 | -70.23, 151.60 | 130.77 | 05/24/2024 | 13:38:48 | -70.24, 151.61 | 130.76 | 1.43 | 32 |
| 10 | 05/24/2024 | 14:29:00 | 70.14, -40.95 | 49.13 | 05/24/2024 | 14:28:15 | 70.13, -40.91 | 49.12 | 2.17 | 45 |
| 11 | 05/27/2024 | 05:04:24 | 70.46, 99.71 | 49.02 | 05/27/2024 | 05:05:35 | 70.41, 100.13 | 48.95 | 16.89 | 71 |
| 12 | 05/27/2024 | 05:55:03 | -70.20, -92.56 | 131.26 | 05/27/2024 | 05:55:07 | -70.19, -92.55 | 131.27 | 1.35 | 4 |
| 13 | 05/27/2024 | 06:45:46 | 70.06, 74.97 | 48.59 | 05/27/2024 | 06:44:34 | 70.07, 74.92 | 48.61 | 2.24 | 72 |

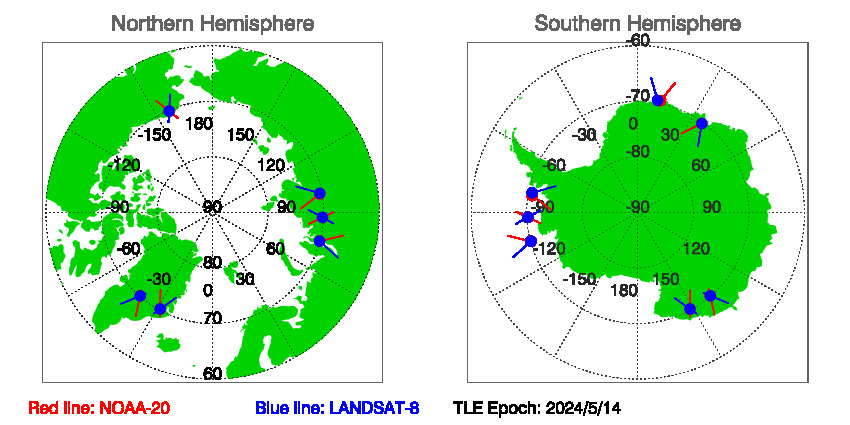

Figure of NOAA-20 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 5/14/2024
Download SNOs between NOAA-20 and LANDSAT-8 since TLE EPOCH: 05/14/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and LANDSAT-8
