Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/10/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 05/11/2024 | 05:05:04 | 70.74, 99.16 | 52.68 | 05/11/2024 | 05:06:14 | 70.62, 100.32 | 52.53 | 44.83 | 70 |
| 2 | 05/11/2024 | 05:55:38 | -70.22, -92.69 | 127.88 | 05/11/2024 | 05:55:49 | -70.23, -92.62 | 127.87 | 3.20 | 11 |
| 3 | 05/11/2024 | 06:46:21 | 70.07, 74.85 | 51.96 | 05/11/2024 | 06:45:17 | 70.08, 74.80 | 51.97 | 1.80 | 64 |
| 4 | 05/13/2024 | 21:21:46 | 70.29,-144.34 | 51.55 | 05/13/2024 | 21:22:46 | 70.29,-144.29 | 51.53 | 2.09 | 60 |
| 5 | 05/13/2024 | 22:12:28 | -70.19, 23.14 | 128.57 | 05/13/2024 | 22:12:16 | -70.17, 23.18 | 128.59 | 2.40 | 12 |
| 6 | 05/13/2024 | 23:03:01 | 69.51,-168.54 | 50.73 | 05/13/2024 | 23:01:52 | 69.57,-170.01 | 50.82 | 57.45 | 69 |
| 7 | 05/16/2024 | 13:38:35 | 70.22, -28.45 | 50.85 | 05/16/2024 | 13:39:12 | 70.23, -28.48 | 50.85 | 1.34 | 37 |
| 8 | 05/16/2024 | 14:29:17 | -70.12, 139.03 | 129.27 | 05/16/2024 | 14:28:42 | -70.12, 138.99 | 129.27 | 1.35 | 35 |
| 9 | 05/19/2024 | 05:04:51 | -70.89, -81.04 | 129.04 | 05/19/2024 | 05:06:00 | -70.79, -79.41 | 129.18 | 60.48 | 69 |
| 10 | 05/19/2024 | 05:55:23 | 70.17, 87.42 | 50.21 | 05/19/2024 | 05:55:36 | 70.18, 87.34 | 50.22 | 3.30 | 13 |
| 11 | 05/19/2024 | 06:46:06 | -70.11,-105.18 | 129.86 | 05/19/2024 | 06:45:05 | -70.13,-105.10 | 129.84 | 3.30 | 61 |
| 12 | 05/21/2024 | 21:21:29 | -70.27, 35.74 | 130.23 | 05/21/2024 | 21:22:33 | -70.26, 35.70 | 130.25 | 2.01 | 64 |
| 13 | 05/21/2024 | 22:12:13 | 70.18,-156.81 | 49.68 | 05/21/2024 | 22:11:59 | 70.20,-156.74 | 49.69 | 3.21 | 14 |
| 14 | 05/21/2024 | 23:02:47 | -69.65, 11.30 | 130.88 | 05/21/2024 | 23:01:36 | -69.70, 10.20 | 130.80 | 42.91 | 71 |

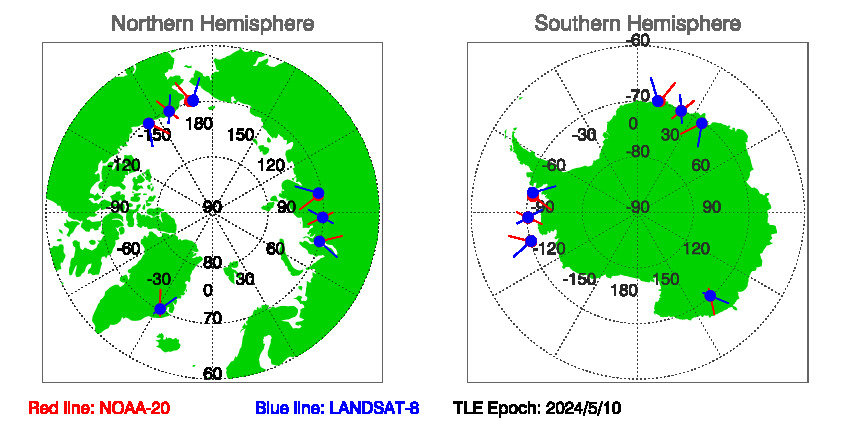

Figure of NOAA-20 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 5/10/2024
Download SNOs between NOAA-20 and LANDSAT-8 since TLE EPOCH: 05/10/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and LANDSAT-8
