Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/2/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 04/03/2024 | 21:21:55 | -70.93, 34.75 | 114.84 | 04/03/2024 | 21:23:03 | -70.82, 36.51 | 115.01 | 65.27 | 68 |
| 2 | 04/03/2024 | 22:12:21 | 70.21,-156.75 | 64.40 | 04/03/2024 | 22:12:39 | 70.23,-156.72 | 64.41 | 1.95 | 18 |
| 3 | 04/03/2024 | 23:03:02 | -70.11, 10.72 | 115.72 | 04/03/2024 | 23:02:09 | -70.11, 10.75 | 115.72 | 1.18 | 53 |
| 4 | 04/06/2024 | 16:56:44 | -70.26, 102.07 | 116.61 | 04/06/2024 | 16:57:27 | -70.26, 102.11 | 116.62 | 1.71 | 43 |
| 5 | 04/06/2024 | 17:47:22 | 70.16, -90.44 | 63.27 | 04/06/2024 | 17:46:54 | 70.15, -90.39 | 63.27 | 1.81 | 28 |
| 6 | 04/06/2024 | 18:37:46 | -69.17, 78.33 | 117.77 | 04/06/2024 | 18:36:39 | -69.22, 75.97 | 117.65 | 93.62 | 67 |
| 7 | 04/09/2024 | 11:41:04 | 70.26, 1.00 | 62.35 | 04/09/2024 | 11:42:13 | 70.26, 0.92 | 62.34 | 2.92 | 69 |
| 8 | 04/09/2024 | 12:31:45 | -70.18, 168.44 | 117.75 | 04/09/2024 | 12:31:43 | -70.16, 168.40 | 117.78 | 3.18 | 2 |
| 9 | 04/09/2024 | 13:22:23 | 70.07, -24.05 | 62.12 | 04/09/2024 | 13:21:10 | 70.05, -24.11 | 62.11 | 3.28 | 73 |
| 10 | 04/12/2024 | 06:25:41 | -71.04,-101.36 | 117.87 | 04/12/2024 | 06:26:49 | -70.95, -99.26 | 118.02 | 76.46 | 68 |
| 11 | 04/12/2024 | 07:16:06 | 70.23, 67.29 | 61.28 | 04/12/2024 | 07:16:27 | 70.23, 67.31 | 61.27 | 1.22 | 21 |
| 12 | 04/12/2024 | 08:06:46 | -70.12,-125.22 | 118.86 | 04/12/2024 | 08:05:57 | -70.13,-125.20 | 118.84 | 1.72 | 49 |
| 13 | 04/15/2024 | 02:00:27 | -70.25, -33.83 | 119.72 | 04/15/2024 | 02:01:14 | -70.23, -33.89 | 119.74 | 2.98 | 47 |
| 14 | 04/15/2024 | 02:51:06 | 70.15, 133.64 | 60.18 | 04/15/2024 | 02:50:40 | 70.17, 133.66 | 60.19 | 1.56 | 26 |

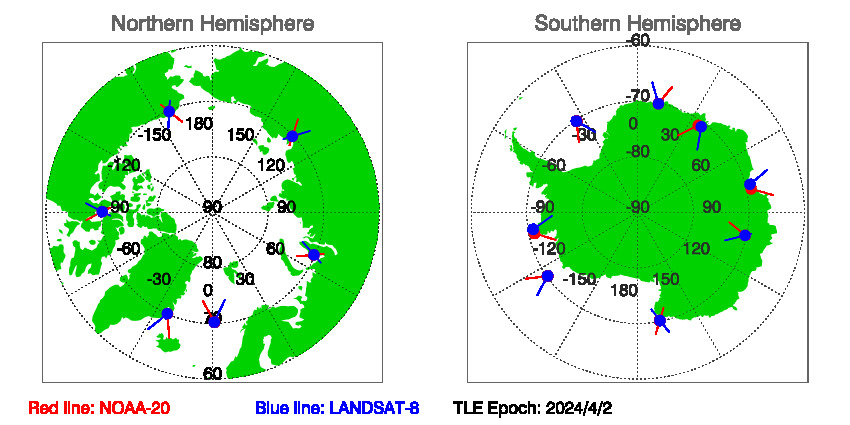

Figure of NOAA-20 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 4/2/2024
Download SNOs between NOAA-20 and LANDSAT-8 since TLE EPOCH: 04/02/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and LANDSAT-8
