Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/16/2022
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 07/16/2022 | 15:06:22 | 70.11, -50.23 | 48.81 | 07/16/2022 | 15:06:51 | 70.10, -50.18 | 48.79 | 2.32 | 29 |
| 2 | 07/16/2022 | 15:57:03 | -69.96, 117.31 | 131.34 | 07/16/2022 | 15:56:21 | -69.99, 117.30 | 131.31 | 2.98 | 42 |
| 3 | 07/19/2022 | 06:32:40 | -70.68,-102.66 | 130.13 | 07/19/2022 | 06:33:49 | -70.57,-101.27 | 130.31 | 52.91 | 69 |
| 4 | 07/19/2022 | 07:23:14 | 70.05, 65.64 | 49.21 | 07/19/2022 | 07:23:24 | 70.03, 65.59 | 49.19 | 2.78 | 10 |
| 5 | 07/19/2022 | 08:13:56 | -69.95,-126.90 | 130.89 | 07/19/2022 | 08:12:53 | -69.97,-126.85 | 130.86 | 3.24 | 63 |
| 6 | 07/21/2022 | 22:49:23 | -70.14, 13.96 | 130.19 | 07/21/2022 | 22:50:28 | -70.16, 14.00 | 130.19 | 2.20 | 65 |
| 7 | 07/21/2022 | 23:40:07 | 70.04,-178.58 | 49.71 | 07/21/2022 | 23:39:55 | 70.05,-178.51 | 49.72 | 2.91 | 12 |
| 8 | 07/22/2022 | 00:30:42 | -69.57, -10.56 | 130.78 | 07/22/2022 | 00:29:31 | -69.61, -11.48 | 130.69 | 35.69 | 71 |
| 9 | 07/24/2022 | 15:06:15 | -70.09, 129.82 | 129.70 | 07/24/2022 | 15:07:00 | -70.11, 129.81 | 129.68 | 2.93 | 45 |
| 10 | 07/24/2022 | 15:56:59 | 69.98, -62.72 | 50.20 | 07/24/2022 | 15:56:27 | 70.00, -62.70 | 50.22 | 1.99 | 32 |
| 11 | 07/27/2022 | 06:32:41 | 71.03, 76.76 | 51.88 | 07/27/2022 | 06:33:47 | 70.92, 79.26 | 51.67 | 91.27 | 66 |
| 12 | 07/27/2022 | 07:23:07 | -70.08,-114.40 | 129.12 | 07/27/2022 | 07:23:31 | -70.05,-114.39 | 129.15 | 3.40 | 24 |
| 13 | 07/27/2022 | 08:13:50 | 69.93, 53.14 | 50.74 | 07/27/2022 | 08:12:58 | 69.94, 53.09 | 50.75 | 1.94 | 52 |
| 14 | 07/29/2022 | 22:49:19 | 70.25,-166.19 | 51.67 | 07/29/2022 | 22:50:31 | 70.19,-165.96 | 51.60 | 10.86 | 72 |
| 15 | 07/29/2022 | 23:39:59 | -70.03, 1.45 | 128.54 | 07/29/2022 | 23:40:02 | -70.03, 1.46 | 128.55 | 0.24 | 3 |
| 16 | 07/30/2022 | 00:30:42 | 69.88, 168.99 | 51.31 | 07/30/2022 | 00:29:29 | 69.92, 168.94 | 51.36 | 4.27 | 73 |

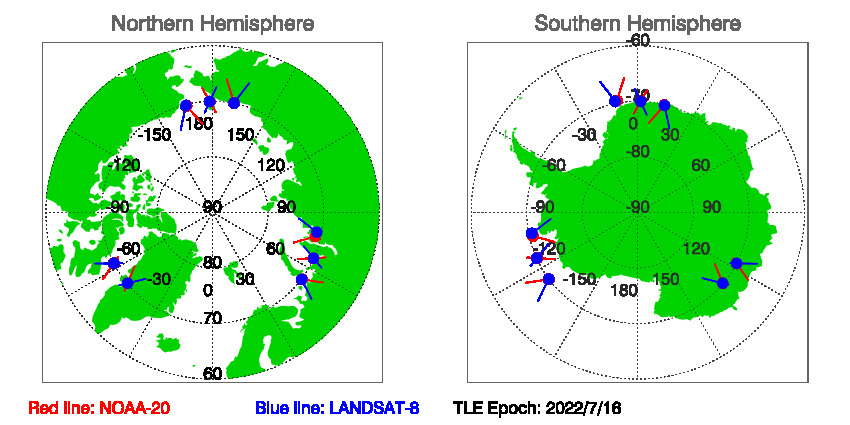

Figure of NOAA-20 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 7/16/2022
Download SNOs between NOAA-20 and LANDSAT-8 since TLE EPOCH: 07/16/2022 in txt file.
Historial Predications of SNOs between NOAA-20 and LANDSAT-8
