Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/1/2022
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 06/01/2022 | 06:32:57 | -70.16,-101.89 | 131.98 | 06/01/2022 | 06:33:40 | -70.16,-101.86 | 131.98 | 1.51 | 43 |
| 2 | 06/01/2022 | 07:23:41 | 70.03, 65.61 | 47.89 | 06/01/2022 | 07:23:08 | 70.01, 65.57 | 47.88 | 2.47 | 33 |
| 3 | 06/03/2022 | 21:59:24 | 71.01,-154.81 | 48.58 | 06/03/2022 | 22:00:30 | 70.91,-152.51 | 48.42 | 84.35 | 66 |
| 4 | 06/03/2022 | 22:49:51 | -70.14, 13.91 | 132.33 | 06/03/2022 | 22:50:12 | -70.14, 13.98 | 132.34 | 2.80 | 21 |
| 5 | 06/03/2022 | 23:40:35 | 70.02,-178.60 | 47.54 | 06/03/2022 | 23:39:40 | 69.99,-178.59 | 47.51 | 3.39 | 55 |
| 6 | 06/06/2022 | 14:16:02 | 70.21, -37.75 | 47.46 | 06/06/2022 | 14:17:13 | 70.22, -37.67 | 47.45 | 3.05 | 71 |
| 7 | 06/06/2022 | 15:06:43 | -70.07, 129.78 | 132.69 | 06/06/2022 | 15:06:44 | -70.05, 129.73 | 132.71 | 2.87 | 1 |
| 8 | 06/06/2022 | 15:57:25 | 69.85, -62.57 | 47.08 | 06/06/2022 | 15:56:12 | 69.89, -62.85 | 47.13 | 11.70 | 73 |
| 9 | 06/09/2022 | 06:32:55 | 70.15, 78.11 | 47.16 | 06/09/2022 | 06:33:45 | 70.17, 78.13 | 47.16 | 1.62 | 50 |
| 10 | 06/09/2022 | 07:23:37 | -70.06,-114.43 | 132.94 | 06/09/2022 | 07:23:15 | -70.06,-114.38 | 132.95 | 1.89 | 22 |
| 11 | 06/09/2022 | 08:14:04 | 69.04, 54.35 | 46.01 | 06/09/2022 | 08:12:58 | 69.07, 51.92 | 46.10 | 96.75 | 66 |
| 12 | 06/11/2022 | 22:49:48 | 70.10,-166.04 | 46.91 | 06/11/2022 | 22:50:17 | 70.11,-166.08 | 46.91 | 1.74 | 29 |
| 13 | 06/11/2022 | 23:40:30 | -70.00, 1.43 | 133.20 | 06/11/2022 | 23:39:47 | -70.00, 1.41 | 133.19 | 0.62 | 43 |
| 14 | 06/14/2022 | 14:16:05 | -70.57, 141.69 | 132.74 | 06/14/2022 | 14:17:16 | -70.47, 142.69 | 132.88 | 38.86 | 71 |
| 15 | 06/14/2022 | 15:06:42 | 70.10, -50.27 | 46.77 | 06/14/2022 | 15:06:48 | 70.09, -50.23 | 46.75 | 2.23 | 6 |
| 16 | 06/14/2022 | 15:57:24 | -70.00, 117.20 | 133.34 | 06/14/2022 | 15:56:18 | -69.99, 117.27 | 133.35 | 2.90 | 66 |

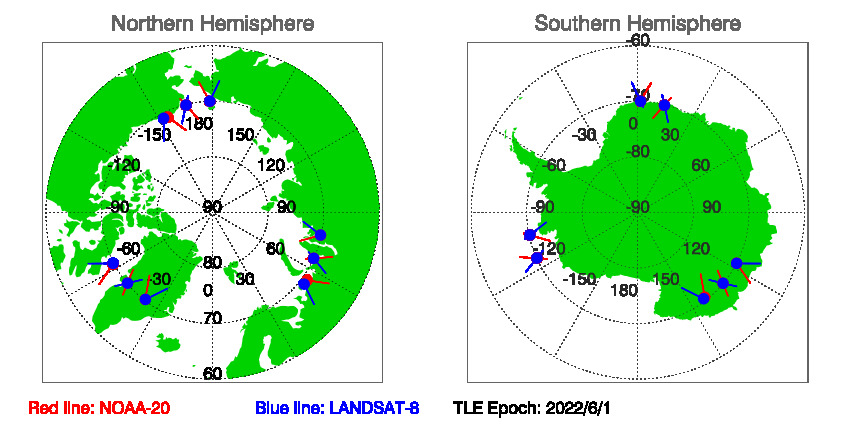

Figure of NOAA-20 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 6/1/2022
Download SNOs between NOAA-20 and LANDSAT-8 since TLE EPOCH: 06/01/2022 in txt file.
Historial Predications of SNOs between NOAA-20 and LANDSAT-8
