Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/29/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 12/31/2021 | 07:22:15 | -70.10,-114.39 | 86.88 | 12/31/2021 | 07:23:22 | -70.10,-114.35 | 86.89 | 1.40 | 67 |
| 2 | 12/31/2021 | 08:12:59 | 69.97, 53.11 | 92.99 | 12/31/2021 | 08:12:49 | 69.99, 53.15 | 93.01 | 2.71 | 10 |
| 3 | 12/31/2021 | 09:03:35 | -69.58,-138.98 | 87.43 | 12/31/2021 | 09:02:23 | -69.66,-139.68 | 87.32 | 28.33 | 72 |
| 4 | 01/02/2022 | 23:39:07 | -70.08, 1.43 | 87.12 | 01/02/2022 | 23:39:50 | -70.06, 1.49 | 87.15 | 3.12 | 43 |
| 5 | 01/03/2022 | 00:29:51 | 69.96, 168.92 | 92.76 | 01/03/2022 | 00:29:17 | 69.96, 168.99 | 92.75 | 2.70 | 34 |
| 6 | 01/05/2022 | 15:05:30 | 70.84, -51.31 | 93.40 | 01/05/2022 | 15:06:37 | 70.73, -49.27 | 93.24 | 75.47 | 67 |
| 7 | 01/05/2022 | 15:55:58 | -70.02, 117.31 | 87.46 | 01/05/2022 | 15:56:18 | -70.02, 117.32 | 87.46 | 0.72 | 20 |
| 8 | 01/05/2022 | 16:46:42 | 69.90, -75.20 | 92.41 | 01/05/2022 | 16:45:45 | 69.91, -75.19 | 92.43 | 1.69 | 57 |
| 9 | 01/08/2022 | 07:22:08 | 70.09, 65.66 | 92.30 | 01/08/2022 | 07:23:16 | 70.08, 65.65 | 92.27 | 1.94 | 68 |
| 10 | 01/08/2022 | 08:12:49 | -69.95,-126.81 | 87.86 | 01/08/2022 | 08:12:46 | -69.97,-126.87 | 87.84 | 2.99 | 3 |
| 11 | 01/08/2022 | 09:03:28 | 69.57, 41.06 | 91.75 | 01/08/2022 | 09:02:17 | 69.64, 40.32 | 91.84 | 29.85 | 71 |
| 12 | 01/10/2022 | 23:38:58 | 70.04,-178.47 | 91.86 | 01/10/2022 | 23:39:42 | 70.07,-178.48 | 91.88 | 3.38 | 44 |
| 13 | 01/11/2022 | 00:29:40 | -69.95, -11.01 | 88.24 | 01/11/2022 | 00:29:12 | -69.96, -10.99 | 88.23 | 1.87 | 28 |

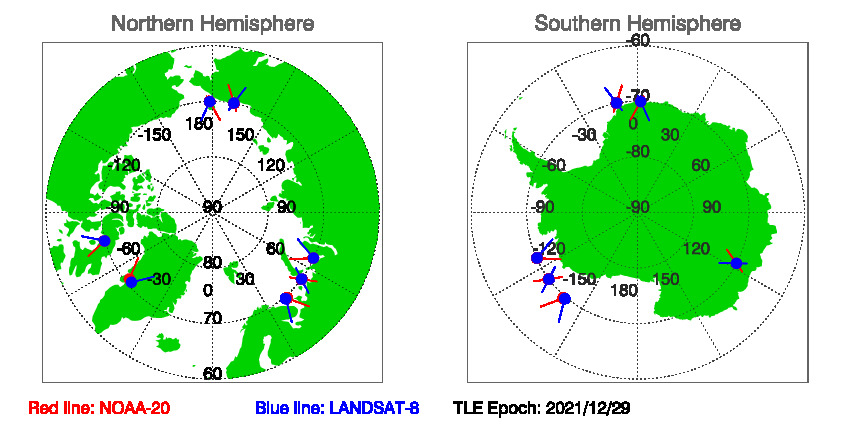

Figure of NOAA-20 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 12/29/2021
Download SNOs between NOAA-20 and LANDSAT-8 since TLE EPOCH: 12/29/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and LANDSAT-8
