Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 11/26/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 11/26/2021 | 15:05:53 | -70.07, 129.72 | 88.98 | 11/26/2021 | 15:07:01 | -70.08, 129.75 | 88.98 | 1.53 | 68 |
| 2 | 11/26/2021 | 15:56:37 | 69.96, -62.79 | 90.91 | 11/26/2021 | 15:56:28 | 69.98, -62.75 | 90.93 | 2.98 | 9 |
| 3 | 11/26/2021 | 16:47:14 | -69.61, 105.04 | 89.44 | 11/26/2021 | 16:46:02 | -69.65, 104.42 | 89.40 | 24.40 | 72 |
| 4 | 11/29/2021 | 07:22:46 | -70.07,-114.49 | 88.51 | 11/29/2021 | 07:23:31 | -70.05,-114.42 | 88.53 | 3.65 | 45 |
| 5 | 11/29/2021 | 08:13:29 | 69.90, 53.07 | 91.33 | 11/29/2021 | 08:12:59 | 69.89, 53.00 | 91.31 | 2.98 | 30 |
| 6 | 12/01/2021 | 22:49:11 | 70.95,-167.44 | 92.81 | 12/01/2021 | 22:50:17 | 70.83,-165.02 | 92.67 | 89.07 | 66 |
| 7 | 12/01/2021 | 23:39:37 | -70.02, 1.37 | 88.14 | 12/01/2021 | 23:40:00 | -70.01, 1.41 | 88.15 | 1.75 | 23 |
| 8 | 12/02/2021 | 00:30:21 | 69.91, 168.85 | 91.76 | 12/02/2021 | 00:29:27 | 69.90, 168.90 | 91.75 | 2.11 | 54 |
| 9 | 12/04/2021 | 15:05:48 | 70.12, -50.32 | 92.33 | 12/04/2021 | 15:07:00 | 70.07, -50.26 | 92.29 | 5.18 | 72 |
| 10 | 12/04/2021 | 15:56:29 | -69.97, 117.22 | 87.82 | 12/04/2021 | 15:56:30 | -69.97, 117.23 | 87.82 | 0.33 | 1 |
| 11 | 12/04/2021 | 16:47:11 | 69.75, -75.15 | 91.97 | 12/04/2021 | 16:45:58 | 69.80, -75.36 | 92.02 | 9.92 | 73 |
| 12 | 12/07/2021 | 07:22:39 | 70.02, 65.61 | 92.56 | 12/07/2021 | 07:23:30 | 70.02, 65.54 | 92.56 | 2.55 | 51 |
| 13 | 12/07/2021 | 08:13:21 | -69.93,-126.93 | 87.54 | 12/07/2021 | 08:13:00 | -69.92,-126.96 | 87.54 | 1.28 | 21 |
| 14 | 12/07/2021 | 09:03:48 | 68.91, 41.83 | 91.45 | 12/07/2021 | 09:02:42 | 68.97, 39.42 | 91.53 | 96.80 | 66 |
| 15 | 12/09/2021 | 23:39:32 | 70.03,-178.63 | 92.85 | 12/09/2021 | 23:39:59 | 70.02,-178.58 | 92.83 | 2.48 | 27 |
| 16 | 12/10/2021 | 00:30:13 | -69.89, -11.08 | 87.31 | 12/10/2021 | 00:29:30 | -69.87, -11.16 | 87.33 | 3.48 | 43 |

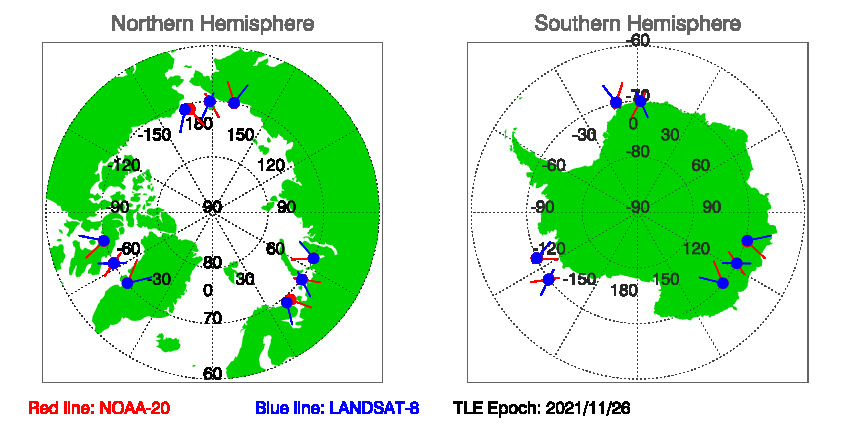

Figure of NOAA-20 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 11/26/2021
Download SNOs between NOAA-20 and LANDSAT-8 since TLE EPOCH: 11/26/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and LANDSAT-8
