Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/5/2020
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 07/05/2020 | 06:32:32 | 70.15, 78.09 | 47.41 | 07/05/2020 | 06:33:27 | 70.17, 78.16 | 47.41 | 3.69 | 55 |
| 2 | 07/05/2020 | 07:23:13 | -70.01,-114.38 | 132.75 | 07/05/2020 | 07:22:58 | -70.01,-114.44 | 132.75 | 2.50 | 15 |
| 3 | 07/05/2020 | 08:13:44 | 69.20, 54.11 | 46.42 | 07/05/2020 | 08:12:36 | 69.30, 52.24 | 46.59 | 74.43 | 68 |
| 4 | 07/07/2020 | 22:49:25 | 70.10,-166.06 | 47.64 | 07/07/2020 | 22:49:59 | 70.07,-166.10 | 47.61 | 3.39 | 34 |
| 5 | 07/07/2020 | 23:40:07 | -70.01, 1.40 | 132.46 | 07/07/2020 | 23:39:28 | -70.02, 1.46 | 132.44 | 2.54 | 39 |
| 6 | 07/10/2020 | 14:15:45 | -70.73, 141.40 | 131.36 | 07/10/2020 | 14:16:54 | -70.62, 142.94 | 131.54 | 58.05 | 69 |
| 7 | 07/10/2020 | 15:06:18 | 70.05, -50.21 | 47.92 | 07/10/2020 | 15:06:29 | 70.08, -50.21 | 47.95 | 3.37 | 11 |
| 8 | 07/10/2020 | 15:57:00 | -69.95, 117.25 | 132.18 | 07/10/2020 | 15:55:59 | -69.97, 117.27 | 132.15 | 2.24 | 61 |
| 9 | 07/13/2020 | 06:32:28 | -70.16,-101.91 | 131.59 | 07/13/2020 | 06:33:33 | -70.14,-101.89 | 131.63 | 2.45 | 65 |
| 10 | 07/13/2020 | 07:23:12 | 70.05, 65.56 | 48.30 | 07/13/2020 | 07:23:00 | 70.03, 65.60 | 48.28 | 3.02 | 12 |
| 11 | 07/13/2020 | 08:13:47 | -69.59,-126.43 | 132.19 | 07/13/2020 | 08:12:35 | -69.65,-127.30 | 132.08 | 34.33 | 72 |
| 12 | 07/15/2020 | 22:49:20 | -70.11, 13.94 | 131.23 | 07/15/2020 | 22:50:03 | -70.09, 13.91 | 131.26 | 2.59 | 43 |
| 13 | 07/15/2020 | 23:40:04 | 70.00,-178.59 | 48.67 | 07/15/2020 | 23:39:30 | 69.97,-178.60 | 48.65 | 3.22 | 34 |
| 14 | 07/18/2020 | 14:15:45 | 70.89, -38.86 | 50.07 | 07/18/2020 | 14:16:52 | 70.79, -36.80 | 49.88 | 76.14 | 67 |
| 15 | 07/18/2020 | 15:06:13 | -70.06, 129.79 | 130.81 | 07/18/2020 | 15:06:33 | -70.08, 129.79 | 130.79 | 3.11 | 20 |
| 16 | 07/18/2020 | 15:56:57 | 69.95, -62.75 | 49.09 | 07/18/2020 | 15:56:00 | 69.97, -62.72 | 49.11 | 2.13 | 57 |

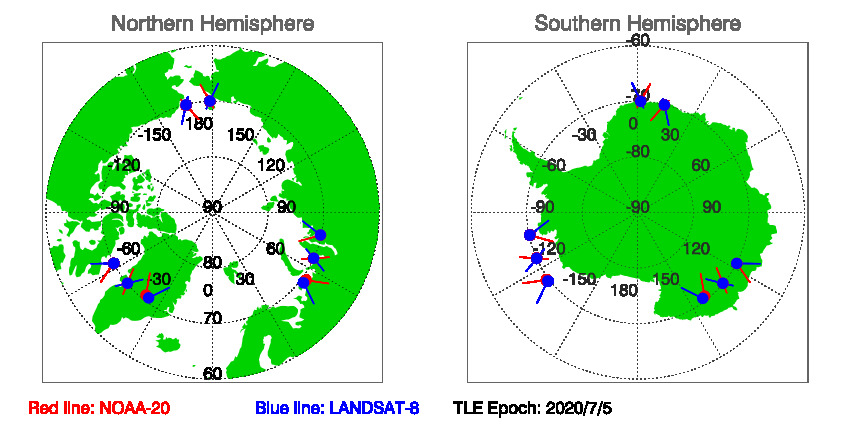

Figure of NOAA-20 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 7/5/2020
Download SNOs between NOAA-20 and LANDSAT-8 since TLE EPOCH: 07/05/2020 in txt file.
Historical Predications of SNOs between NOAA-20 and LANDSAT-8
