Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/10/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 05/11/2024 | 06:01:04 | -81.25,-167.17 | 109.93 | 05/11/2024 | 06:01:45 | -81.26,-167.27 | 109.94 | 1.74 | 41 |
| 2 | 05/11/2024 | 06:51:48 | 81.26, 0.31 | 70.04 | 05/11/2024 | 06:51:07 | 81.26, 0.43 | 70.05 | 2.02 | 41 |
| 3 | 05/13/2024 | 18:54:54 | -81.25, -0.63 | 110.55 | 05/13/2024 | 18:55:09 | -81.26, -0.58 | 110.57 | 0.97 | 15 |
| 4 | 05/13/2024 | 19:45:37 | 81.26, 167.23 | 69.36 | 05/13/2024 | 19:44:31 | 81.26, 167.10 | 69.42 | 2.35 | 66 |
| 5 | 05/16/2024 | 06:58:00 | 81.25, -1.63 | 68.91 | 05/16/2024 | 06:59:10 | 81.25, -1.57 | 68.85 | 1.20 | 70 |
| 6 | 05/16/2024 | 07:48:44 | -81.26, 166.21 | 111.18 | 05/16/2024 | 07:48:32 | -81.26, 166.25 | 111.18 | 0.75 | 12 |
| 7 | 05/18/2024 | 19:51:50 | 81.25, 165.12 | 68.33 | 05/18/2024 | 19:52:32 | 81.25, 164.99 | 68.32 | 2.23 | 42 |
| 8 | 05/18/2024 | 20:42:33 | -81.27, -26.65 | 111.82 | 05/18/2024 | 20:41:53 | -81.27, -26.79 | 111.77 | 2.47 | 40 |
| 9 | 05/21/2024 | 08:45:39 | 81.26, -27.83 | 67.74 | 05/21/2024 | 08:45:51 | 81.27, -27.93 | 67.75 | 1.75 | 12 |
| 10 | 05/21/2024 | 09:36:23 | -81.27, 140.02 | 112.35 | 05/21/2024 | 09:35:13 | -81.27, 139.91 | 112.29 | 1.80 | 70 |
| 11 | 05/23/2024 | 20:48:46 | -81.25, -29.09 | 112.66 | 05/23/2024 | 20:49:48 | -81.26, -29.06 | 112.70 | 0.60 | 62 |

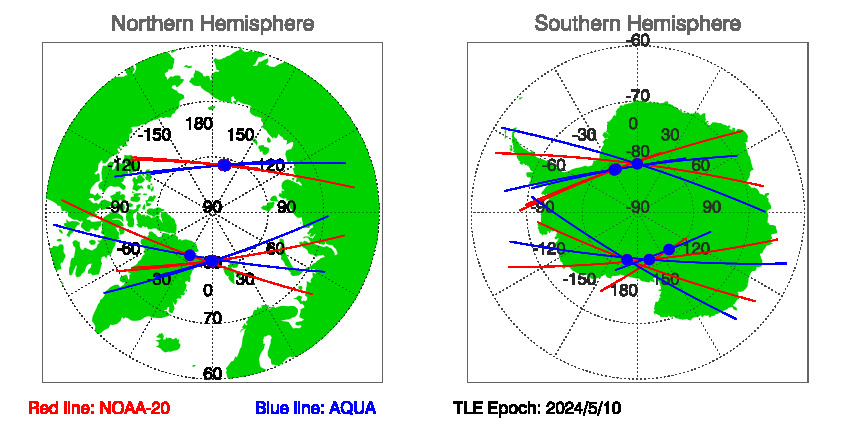

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 5/10/2024
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 05/10/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
