Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/1/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 05/03/2024 | 16:10:15 | 81.25,-139.69 | 72.16 | 05/03/2024 | 16:10:43 | 81.25,-139.81 | 72.16 | 2.03 | 28 |
| 2 | 05/03/2024 | 17:00:59 | -81.26, 28.18 | 107.94 | 05/03/2024 | 17:00:05 | -81.26, 28.06 | 107.89 | 1.95 | 54 |
| 3 | 05/06/2024 | 05:04:07 | 81.24, 26.65 | 71.47 | 05/06/2024 | 05:04:12 | 81.25, 26.83 | 71.44 | 3.00 | 5 |
| 4 | 05/08/2024 | 17:07:15 | -81.24, 25.52 | 109.17 | 05/08/2024 | 17:08:18 | -81.24, 25.69 | 109.23 | 2.97 | 63 |
| 5 | 05/08/2024 | 17:57:57 | 81.26,-166.29 | 70.70 | 05/08/2024 | 17:57:39 | 81.26,-166.29 | 70.72 | 0.15 | 18 |
| 6 | 05/11/2024 | 06:01:04 | -81.25,-167.48 | 109.89 | 05/11/2024 | 06:01:43 | -81.24,-167.56 | 109.90 | 1.54 | 39 |
| 7 | 05/11/2024 | 06:51:47 | 81.26, 0.33 | 70.04 | 05/11/2024 | 06:51:04 | 81.26, 0.44 | 70.05 | 1.86 | 43 |
| 8 | 05/13/2024 | 18:54:54 | -81.26, -0.53 | 110.57 | 05/13/2024 | 18:55:07 | -81.26, -0.58 | 110.57 | 0.81 | 13 |

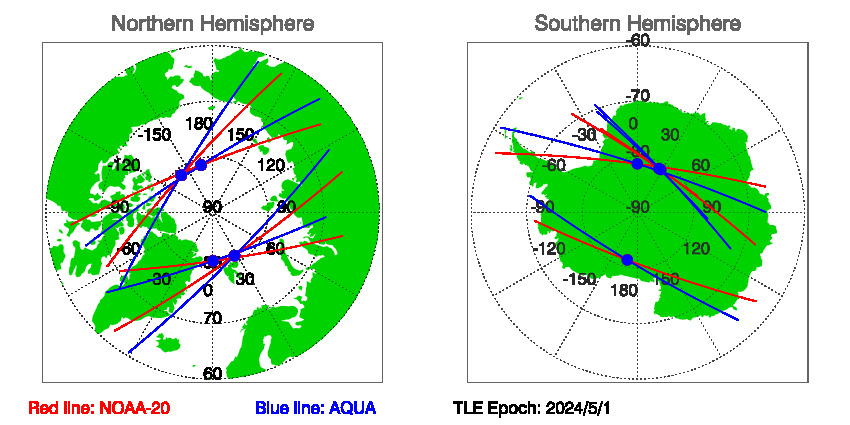

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 5/1/2024
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 05/01/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
